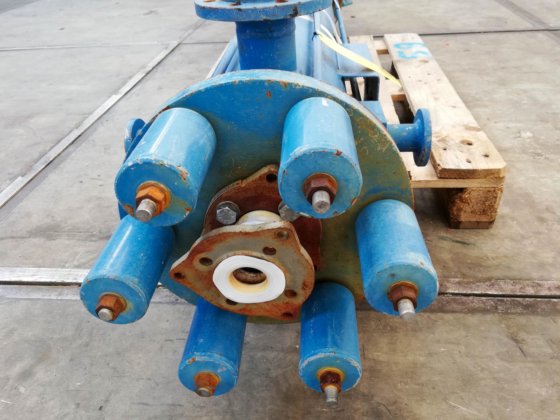

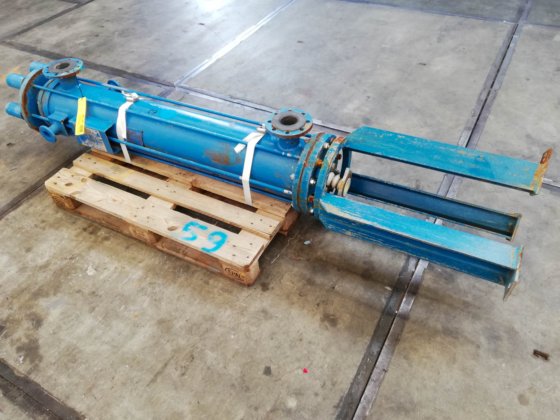

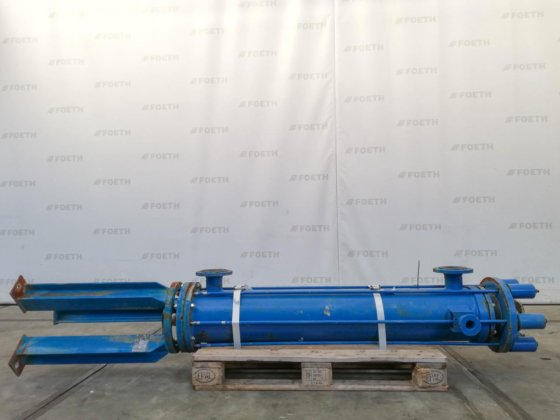

2001 Le Carbone-Lorraine NC210S - Shell and tube heat exchanger in Barneveld, Gelderland, Netherlands
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Year
- 2001
- Stock number
- 212T507
- Check
- Industries > Chemical > Minerals & inorganic
- Vacuum possible jacket
- check
- Working pressure shell
- 10 Bar
- Shell (material)
- Graphite
- Tube (material)
- Graphite
- Surface
- 4.3 m2
- Material
- Graphite
- Heat exchanger
- check
- Notified body
- TÜVÖ
- Heating surface
- 4.3 m²
- Max. temperature
- -10/110 °C
- Shell capacity
- 45,6 Ltr.
- Shell diameter
- 273 mm
- Wall thickness shell
- 6,3 mm
- Shell connections
- DN40 (2x)
- Cover connections
- DN80 (2x)
- Total height
- 1,87 m
- Weight
- 310 kg
- Floorspace
- 0,5x0,5 m
- Category
- Heat Exchangers in Netherlands
- Subcategory
- Industrieën > voedsel & voederverwerking > voedseladditieven
- Listing ID
- 74140397
Description
General
SKU
212T507
Location
Barneveld
Make
Le Carbone-Lorraine
Type
NC210 S
No.
20146
Year of construction
2001
Pressure
Vacuum possible jacket
check
Working pressure shell
10 Bar
Main Features
Shell (Material)
Graphite
Tube (Material)
Graphite
Surface
4.3 m2
Specified Features - Shell and tube heat exchanger
Material
Graphite
Heat exchanger
check
Notified body
TÜVÖ
Heating surface
4.3 m²
Max. temperature
-10/110 °C
Shell capacity
45,6 Ltr.
Shell diameter
273 mm
Wall thickness shell
6,3 mm
Max. temperature
-10/110 °C
Shell connections
DN40 (2x)
Cover connections
DN80 (2x)
Information
Total height
1,87 m
Weight
310 kg
Floorspace
0,5x0,5 m
