POTISJE PA 22 in Zschepplin, Saxony, Germany
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Stock number
- 1106-DR311
- Control type
- conventional
- トラック
- from camp Jena
- Turning diameter over bed
- mm
- Turning diameter over support
- 280 mm
- Turning length
- 4000 mm
- Total power requirement
- 7,8 kW
- Machine weight approx.
- 6 t
- Space requirement approx.
- 5,9 x 1,9 x 1,40 m
- Category
- Lathes in Germany
- Subcategory
- Metalworking
- Subcategory 2
- Center and spindle lathe
- Listing ID
- 73527384
Description

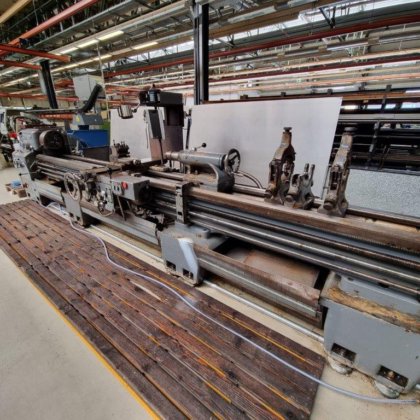

DLZ Lathe 4000 x 500 mm
Turning diameter above the bridge: 480 mm
Turning diameter without bridge: 670 mm
Turning diameter over support: 280 mm
Turning length: 4000 mm
Main spindle bore: 62 mm
Front bearing bore: 105 mm
Digital readout: AccuRite axis digital readout
Suitable for threads: Metric, module, Withworth (inch)
Tailstock: MT 5
Quill diameter: 80 mm
Speed range: 20 - 2000 rpm
Total power requirement: 7.8 kW
Machine weight approx.: 6 t
Automatic longitudinal and cross feeds
Used, tested!
Space required approx.: 5.9 x 1.9 x 1.4 m
Accessories:
Quick-change tool holders (approx. 30 pieces)
3-jaw chuck
Coolant system
Complete machine documentation
Chip return wall
Services offered by seller
This seller offers spare parts
