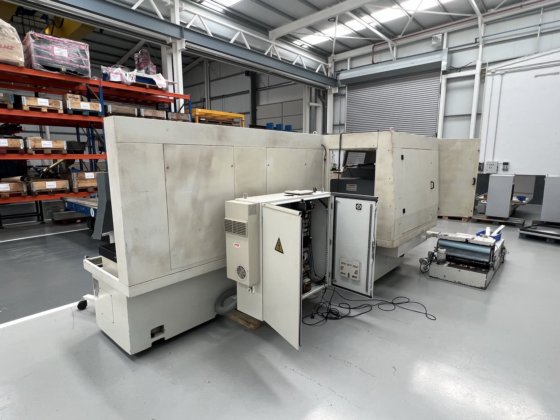

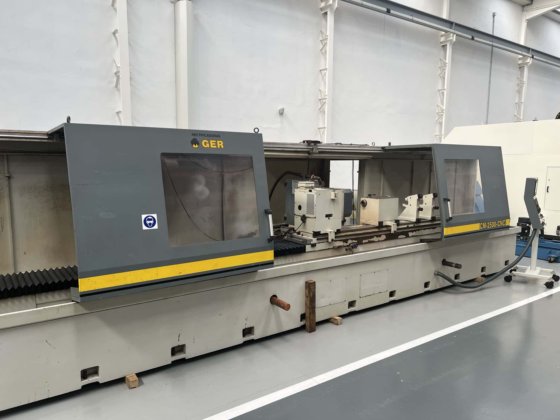

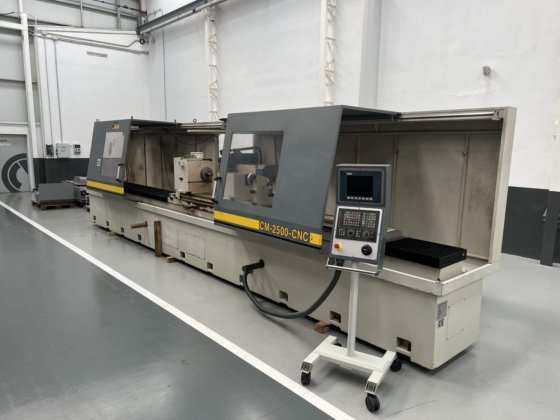

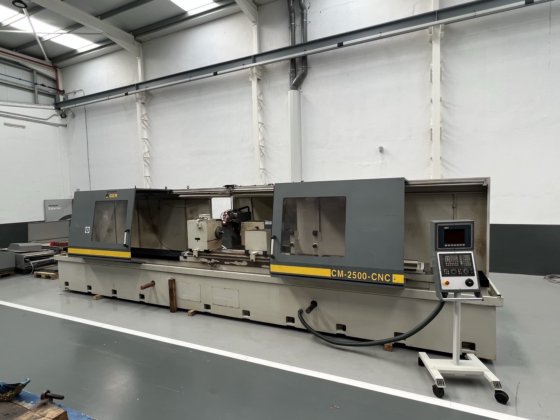

GER CM 2500 Grinding Machine in Álava, Spain
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Features
- .
- Distance between points
- 2.500 mm
- Height of points
- 300 mm
- Maximum diameter to rectify
- 590 mm
- Maximum weight between points
- 2.000 kg
- Maximum weight in air rectification
- 250 kg
- Longitudinal movement
- .
- Maximum programmable longitudinal speed
- 6000 mm/min
- Minimum programmable longitudinal increment
- 0.001 mm
- Transverse movement
- .
- Maximum transverse programmable speed
- 6.000 mm/min
- Minimum programmable cross-sectional increment
- 0.001 mm
- Various
- .
- Max. grinding wheel dimensions
- Ø 500/80 mm
- Grinding wheel cutting speed
- 45 m/s
- Cone of the workholding point
- C.M.6
- Point cone counterpoint
- C.M.6
- 2 steady rests
- INCLUDED
- Machine weight
- 12.000 kg
- Cnc
- FAGOR 8055 M
- Year of production
- 2000
- Category
- Grinding machines in Spain
- Subcategory
- Cnc+cylindrical
- Subcategory 2
- Cnc grinding machines
- Listing ID
- 73334333
Description
Contact us for more information.
