6-axis interface board with network interface incl. software in Rheinmünster, Baden-Württemberg, Germany

Description

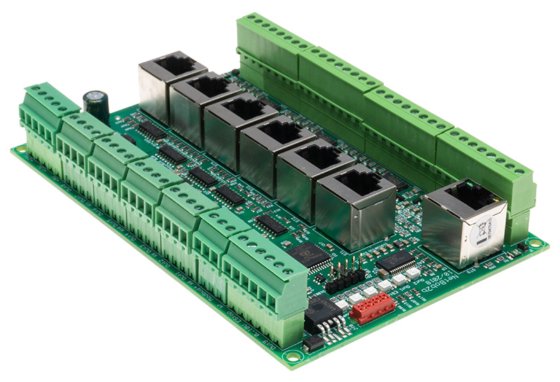

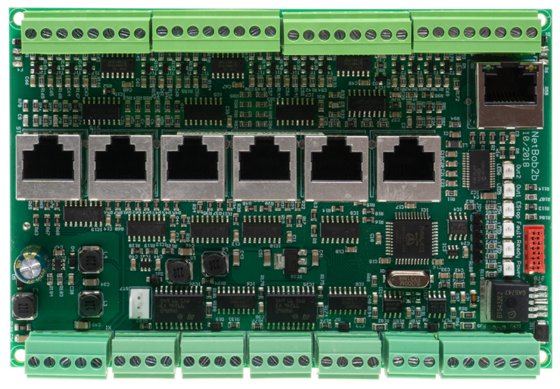

Beamicon2 breakout board Interface board for CNC control up to 6 axes via Ethernet.
The interface board allows the operation of up to six stepper motor or servo output stages with the Beamicon2 CNC software. For data transfer from the PC a normal network connection with RJ45 cable is used. No LPT port is needed, and the well-known limitations of stepper frequency and timing problems are a thing of the past. The board can be set to many different configurations. Depending on the selected configuration, additional functions such as control of a frequency converter or speed controller, reference switches, up to 9 outputs (24 V) and up to 16 inputs (24 V) are available.
All signals are galvanically isolated from the PC, so that a maximum of interference immunity is achieved. All machine-side signals are designed for 24 V level, ensuring robustness and compatibility with industrial sensors.
