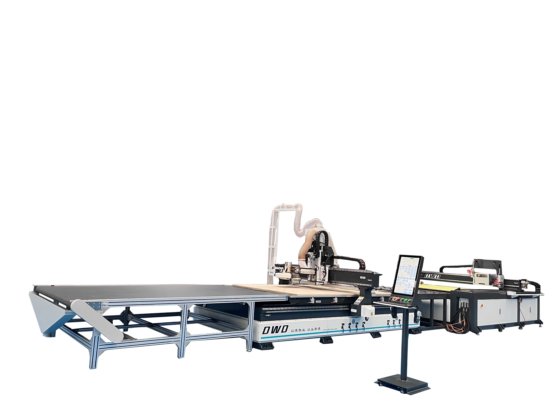

-2821FS automatic loading and unloading automatic labeling connection line in Jinan, Shandong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Effective travel range
- X-axis:2810mm Y-axis:2110mm Z-axis:250mm
- Displacement speed
- X-axis:60m/min Y-axis:60m/min Z-axis:15m/min
- Table size x-axis
- 2070*2800mm
- Workpiece height
- 60mm
- Transfer method
- Guideway, rack and pinion
- Countertop structure
- Double-layer vacuum adsorption countertop
- Spindle speed
- 24000r/min
- Equipment net dimensions
- 12600*4050*2150mm
- Operating power
- 29kw
- Operating voltage
- AC380/3PH/50HZ
- Total weight
- 6000kg
- -cnc controller
- Taiwan
- -servo motors
- Taiwan
- -spindle
- 9kw
- -tool magazine
- Bucket type 12 servo tool changer
- -linear guides
- Taiwan Guideway
- -screw screws
- Taiwan Screws
- -inverters
- 11KW
- -vacuum pumps
- 7.5kw/250m³/h dry rotary vane pumps
- -positioning of plates
- Positioning cylinder + positioning aluminum bar
- -lubrication system
- Electric lubricant pumps
- -precision tool setter
- Automatic tool setting
- Category
- Labelers in China
- Subcategory
- Door panel machining center series
- Listing ID
- 70319201
Description
※Automatic labeling device, automatic loading, optimization of opening, punching vertical holes, automatic discharging in one go, no interruption in the process, improve efficiency and output.
※Machine control interface design is humanized, foolproof operation, the machine moves quickly and agilely, high efficiency, to help you increase production capacity.
※The product adopts 9KW automatic tool changer spindle, Taiwan system and Japan Xinbao planetary reducer, France Schneider electrical components and other imported components, stable performance.
※Size set of plate processing, within 79 feet of the specifications of the plate, to meet the customer's multi-size processing needs.
※The bucket hat type push servo tool magazine 12 knives, can effectively reduce the time of changing knives.
※The table top is vacuum adsorption table top, which can strongly adsorb materials of different areas.
※The vacuum pump adopts dry rotary vane pump with high air displacement and better adsorption force.
※The labeling machine adopts the new generation of servo drive, fast running speed.
※Using the American Zebra printer, fast and stable labeling speed.
