Hyperspectral Imaging Microscope in Xiamen, Fujian, China
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Stock number
- ATH5500-17
- Spectral range
- 1000-1700nm
- Spectral resolution
- <35nm
- Spatial channels
- 480（Max. 2048）
- Spectral channels
- 270 （Max. 1024）
- Bit depth
- 12bit
- Fov overlap
- Shift < 10% of FOV diameter of microscope
- Operating temp.
- +10℃～+40℃
- Working humidity
- 30%～75%
- Voltage
- 100-220V, ±10%
- Emc test
- Pass
- Cleanliness
- No obvious pitting, scratches, bubbles and other defects that obviously affect the observation in the field of view, and no obvious broken edges, oil stains and attachments of optical parts
- Equipment inclined degree
- Normal work < 10°
- Stability
- Stable and firm stand support, movement, moving parts
- Air pressure
- 700hPa～1060hPa
- Optical system
- Infinite chromatic aberration-corrected optical system/common-corrected optical system
- Observer head
- Siedentopf type binocular or trinocular head, 30°inclined,Interpupillary: 50-75mm
- Eyepieces
- PL10X/22mm High eye-point wide field plan eyepiece, PL20X/12mm High eye-point wide field plan eyepiece total 2 pairs, Diopter adjustment ±5 , tube:Φ30mm
- Magnification
- 40~2000 times（total 8 classes）
- Objectives
- Infinite wide field plan achromatic objective; Standard: 4X, 10X, 20X, Optional: 40X, 100X
- Nosepiece
- Inner 3 or 5 holes
- Condenser
- abbe condenser ( optional plug-in phase contrast conversion, dark field condenser interface, polarized port）
- Stages
- 220×148mm double-layer stage X -axis steel wire mechanical moving stage, moving range: 76X50mm,precision 0.1mm, two-slice is available
- Condenser mechanical
- Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm
- Illumination system
- 3WLED brightness continuously adjustable Köhler Illumination system
- Digital camera imaging system
- 5-mega Camer, HD digital USB port, clear and smooth images, Connectable to computer to imaging and taking pictures, videos, measurement, edit, save and print.
- Category
- Microscopes in China
- Subcategory
- Applications
- Subcategory 2
- Scientific research
- Listing ID
- 67129511
Description
ATH5500-17 is self-developed hyperspectral imaging microscope with compact size, HD, high quality
，
it comsists of microscope, hyperspectral imager and data processing work station.
ATH5500-17 employs 1920X1080 pixels high performance CCD imaging component, clear images, low noise, the integrated exclusive high conpression images algorithm can improve database storage.

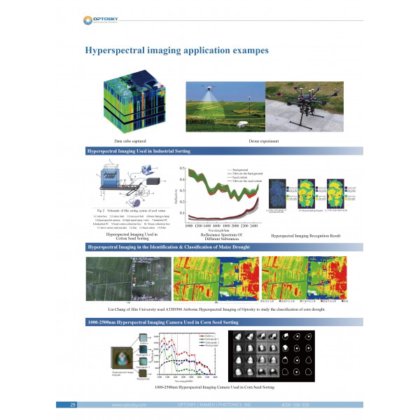

Hyperspectral imaging technology provides spectral images with fast, accurate,and high spectral and spatial resolution, and universality. It can widely applied to medicine, pathology, pharmaceutical, life science.etc. As well as medical institute, research science, medical college, pharmaceutical companies laboratory research equipment.
Models
Features
ATH5500-17
Upright Microscope

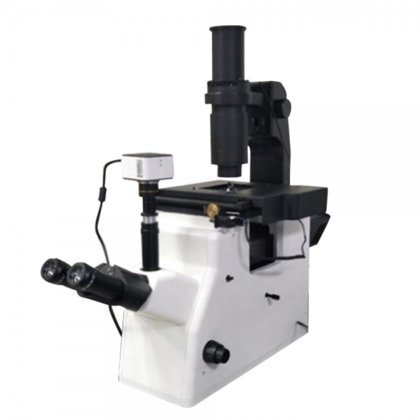

ATH5500INV-17
Inverted Microscope
