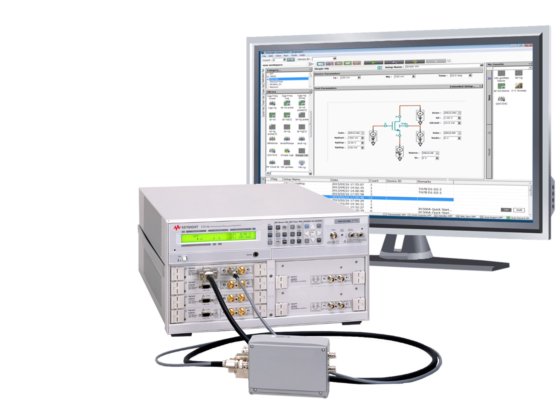

Keysight Technologies E5270B in Harrow, England, United Kingdom
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- High frequency (range)
- DC
- Current-voltage measurement capabilities
- Accurate and precision measurement ranges of 0.1 fA – 1A and 0.5 µV – 200 V Spot and sweep measurement capabilities Pulse spot and sweep measurement with minimum 500 µs pulse width The ASU (atto-sense and switch unit) can be used with the HRSMU to provide 0.1 fA measurement resolution and SMU/AUX path switching
- Easyexpert group+ software
- Characterization environment is available on the user’s PC Intuitive GUI based operation with keyboard and mouse operation Multiple measurement modes for quick setup and measurement execution (application test, classic test, and quick test) Graphical display, automated analysis capabilities, and data generation to Excel and image for analysis and reporting
- E5270b hardware
- Configurable and upgradable measurement modules up to 8 slots High Resolution SMU (HRSMU), Medium Power SMU (MPSMU), and High Power SMU (HPSMU) are available for configurable SMU selection. Optional ASU is supported by HRSMU. High-resolution and high-speed analog-to-digital converters (ADCs) are available to all installed modules Active ground unit (GNDU) in mainframe to force 0 V and sink the current up to 4 A
- Subcategory
- Test equipment
- Subcategory 2
- Lcr & impedance analyzers
- Subcategory 3
- Lcr / impedance analyzers
- Subcategory 4
- Semiconductor test equipment
- Listing ID
- 65897730
Description
Precision Measurement Mainframe; Precision IV Analyzer / 8 Slot
Keysight E5270B Precision IV Analyzer is the complete solution for current-voltage characterization of a wide range of materials and devices with the best in the class current measurement performance as low as 0.1 fA.
Keysight E5270B Precision IV Analyzer is the complete solution for the current-voltage characterization of a wide range of materials and devices. The E5270B supports multiple SMUs (Source/Monitor Units) for voltage/current sourcing and voltage/current measurement with the best in the class current measurement performance as low as 0.1 fA. Its modular architecture allows you to configure or upgrade SMU modules for available eight slots. The EasyEXPERT group+ GUI based characterization software is furnished and available on your PC to support all the tasks required in the characterization from the measurement setup to the data analysis.
