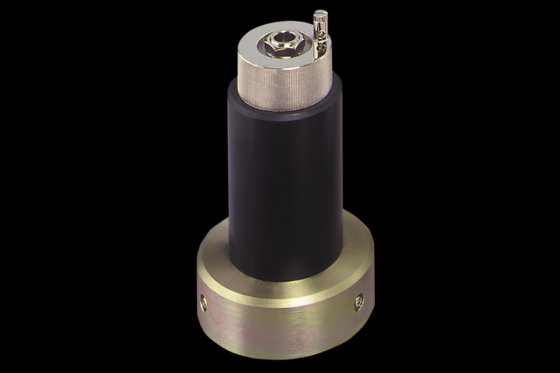

LIQUID SAMPLE ELECTRODE SME-8330 in Nagano, Japan
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Included accessories
- Connection cable 60 cm (1.97 ft) length (Red) 0GA00029 ×1 (Black) 0GA00030 ×1
- Dimensions
- φ 36 mm (1.42 in) × 140 mm (5.51 in)
- Subcategory
- Super megohmmeter options
- Listing ID
- 61137917
Description
Hioki Super Megohmmeters are high insulation resistance meters designed to measure the electrical resistance of insulation materials with high insulating properties. The SME-8330 is used for measuring the insulation resistance or volume resistance of liquid samples, and consists of main and counter electrodes and a protection electrode or guard which removes leakage current through the insulator to sustain the electrodes.
Electrode for liquid samples which is electrically guarded. Total volume is 25 ml. Capacitance between main and counter electrode is approx. 45 pF. Electrode constant is approx. 500 cm. Distance between both electrodes is 1 mm. Outer dia. is 36 mm, height is approx. 140 mm. Measure resistance up to 10^19Ω (at 1000 V) when used together with Model SM-8216.*
*The Z5010 Conversion Adapter is required when using the SM7000 series.
