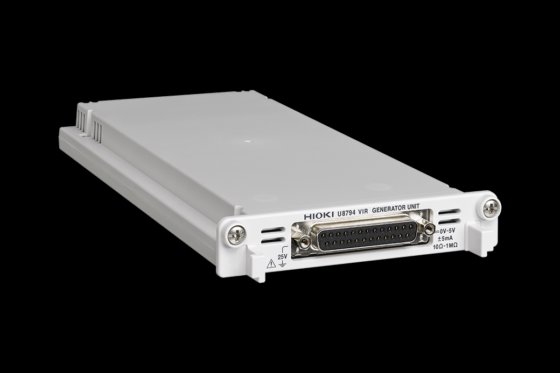

VIR GENERATOR UNIT U8794 in Nagano, Japan
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Output terminal
- Number of channels: 8 (each channel is isolated), Connector: 25-pin D-sub Max. rated voltage to earth: 25 V
- Output items
- DC voltage, DC current, resistance (simulated output)
- Output range
- DC voltage: -0.100 0 V to +5.300 0 V (setting resolution: 0.1 mV) DC current: 5 mA range: -5.000 0 mA to +5.000 0 mA, Setting resolution: 0.1 μA 1 mA range: -1.000 00 mA to +1.000 00 mA, Setting resolution: 0.01 μA 250 μA range: -250. 00 μA to +250.00 μA, Setting resolution: 0.01 μA 50 μA range: -50. 000 μA to +50. 000 μA, Setting resolution: 0.001 μA Resistance: 10 Ω to 1 MΩ, Setting resolution: 6 digits
- Output accuracy
- DC voltage: 5 V range, ±0.035% of setting ± 800 μV DC current: 5 mA range: ±0.050% of setting ± 4.0 μA 1 mA range: ±0.050% of setting ± 800 nA 250 μA range: ±0.050% of setting ± 200 nA 50 μA range: ±0.050% of setting ± 40 nA
- Other
- Self diagnostic, switch output terminals, estimate target connection, cancel offset
- Dimensions and mass
- 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 280 g (9.9 oz)
- Included accessories
- None
- Category
- Test Generators in Japan
- Subcategory
- Memory recorder options
- Listing ID
- 61137839
Description
As an inspection device of the ECU, it is ideal for generating simulation signals of various sensors, inspection of electronic parts, equipment maintenance
DC voltage, DC current, and resistance simulation output
In resistance generation, the voltage to be connected is measured, the output current is calculated from the set resistance value, and simulated output
Used in combination with Memory HiCorder series MR8740T (not available in other models)
Isolation between each output channel and between channel and chassis
Please refer to the table here for the types of input units that can be used for each Memory HiCorder.
List of Available Memory HiCorders
