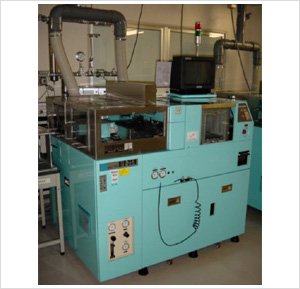

Disco DFD-2S/8 in South Korea
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Application
- Dicing/Cutting/Slotting various wafers
- Drive method
- AC Direct Drive
- Stroke
- 650mm Max
- Effective cut stroke
- 220mm
- Cut speed
- 0.7~3000mm/sec
- Max programmable stroke
- 220mm
- Index speed
- 30mm/sec
- Indexing method min index step
- Linear Scale Closed Loop System 0.001mm
- Indexing accuracy
- Single Pitch 0.003mm Cumulative Pitch 0.005mm/200mm
- Indexing method
- Rotary Encoder
- Max stroke
- 25mm
- Min index
- 0.002mm
- Rotation angle (end to end)
- 150 ˚ max
- Indexing time
- 2sec/90˚
- Min index angle
- 1.62"
- Output
- 800W
- Rpm
- 3,000rpm MAX
- Wash/dry time
- 999 Seconds Max
- Wash → rinse → dry
- Programmable
- Accuracy of table positioning during rotation
- ± 1 ˚
- Alignment method
- CCD Camera Pattern Matching System
- Microscope
- Single Object Magnfication (a b Selectable) Macro Micro a 2.66 X 7.5 X b 7.08 X 19.88 X With Auto Focus Mechanism
- A
- 2.66X
- B
- 7.08 X
- Loading/unloading section
- Cross-Flow Arm System
- Number of cassettes used (detting for pitch and number of workpieces can be changed)
- Number of Cassettes 1 for Each Loader/Unloader 8"Φ=1/4" , 26 Slots 3~6" Φ = 3/16" , 25 Slots
- (1) ac 200/220v
- 3 Phase 50/60 Hz (domestic) 5 KVA
- (2) ac 200 to 415v*
- 3 Phase 50/60 Hz (Overseas) 5 KVA Transformer Necessary
- Cooling water (tap water)
- 2Kg/cm2 1.5 Liters/Min
- Cutting water (d.i water)
- 3 kg/cm2 5 Liters/Min
- Air pressure
- 5.5kgf/㎠ ㆍG 440 Liters/Min
- N
- 5.5kgf/㎠ ㆍG - AT Max. use 565 liters/min
- Subcategory
- Fully automatic dicing saw
- Listing ID
- 60908879
Description
Contact the seller for more information about this listings.
