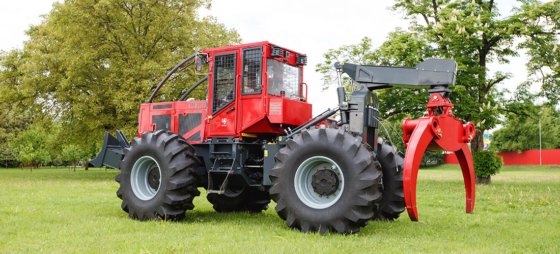

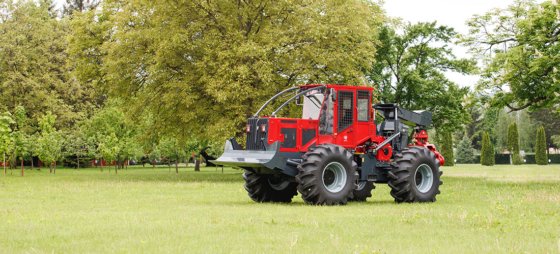

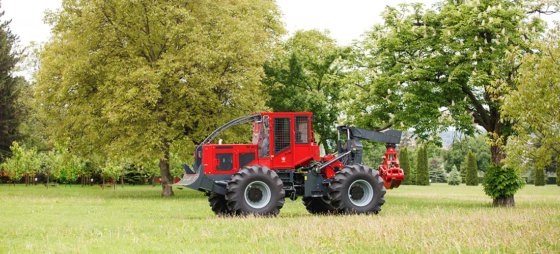

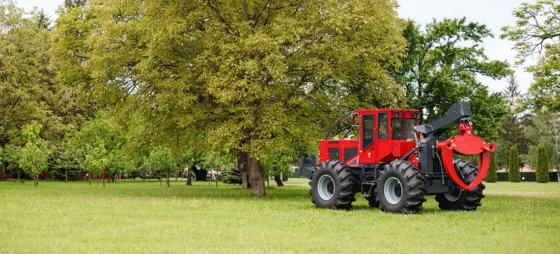

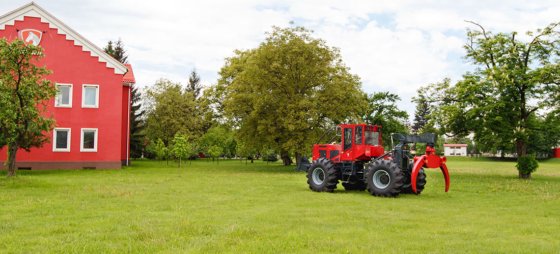

TAF 2012 G in Reghin, Mureș, Romania
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Power class
- average
- Motor
- Perkins 1204E-E44TA
- Engine power
- 82kW (110 hp) at 2200 rpm
- Maximum engine torque
- 450 Nm at 1400 rpm
- Length
- 6800 ± 50 mm
- Width
- 2770 ± 50 mm
- Height
- 3000 ± 50 mm
- Gauge
- 2184 ± 50 mm
- Wheel base
- 2830 ± 50 mm
- Ground clearance
- 450 ± 20 mm
- Blade width
- 2130 ± 50 mm
- Table (fully equipped)
- 9450 kg
- On the front deck
- 4700 kg
- On the rear axle
- 4750 kg
- Maximum load allowed semi-suspended
- 4000 kg
- Maximum mass allowed with load
- 13 450 kg
- Minimum turning radius (inside)
- 2,9 m
- Steering angle of the chassis
- ± 40°
- Traction force of the winch
- 8,500 daN / cable
- Step 1
- 2,03 km/h
- 2nd step
- 3,60 km/h
- 3rd step
- 7,56 km/h
- 4th step
- 13,40 km/h
- Service brake
- with multiple discs immersed in oil, on both decks
- Emergency brake
- mechanical driven by the force of the springs, located on the front axle
- Oscillating front axle
- ± 12°
- Distance between flanges
- 2078 mm
- Maximum static load
- 140.000 N
- Total transmission ratio
- 22,56
- Tire
- 21.3 - 26, STAS 8258 / 1-86
- External diameter
- 1605 mm
- Balloon (width)
- 587 mm
- Static radius
- 714 mm
- Cable diameter
- 13 mm
- Cable length
- 70 m
- Supply voltage
- 12 V
- Control pressure
- 110 - 150 bar
- Oil tank
- capacity: 95 l
- Hydraulic pump flow
- 50 cm3 / rot
- Pressure
- 200 bar
- Hydraulic cylinders
- blade drive
- Maximum opening
- 1 965 mm
- Optimal area
- 0.8m2
- Control
- Joystick
- Pump flow
- 8 cm3 / rot
- Pressure control circuit
- 30 bar
- Brake circuit pressure
- 160 bar
- Category
- Yarders in Romania
- Subcategory
- Forestry equipment
- Listing ID
- 60070788
Description
Presentation
Benefiting from a modern technology in accordance with European standards, TAF 2012 G from IRUM is the newest machine designed in our Research and Development Center, characterized by performance, efficiency and comfort at the western level. The high-performance PERKINS engine, the modern power steering system or the PowerShift gearbox are just some of the high-quality components integrated by IRUM in the new TAF 2012 G machine.
The increased operational performance of this machine is given by the pliers together with its support and arm, replacing the mobile shield of the predecessor.
It allows the logs to be transported to a higher ground height, thus reducing their contact surface with the ground, which leads to an increase in the efficiency of the machine, a decrease in consumption and an increase in service life.
