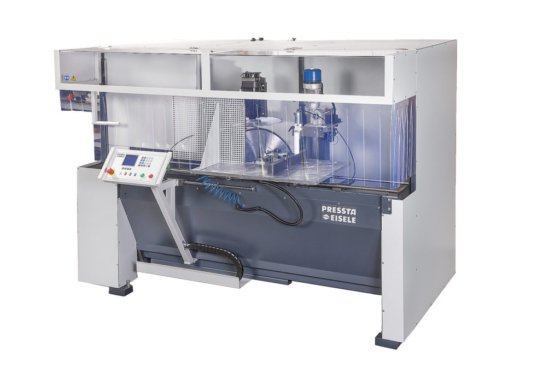

Prisma 650E / 652 in Bullay, Rhineland-Palatinate, Germany
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Profile dimensions
- height maximum 320mm, width maximum 280mm
- Category
- Saws in Germany
- Subcategory
- Automatic circular saws
- Listing ID
- 58139647
Description
Variable notching possibilities for mullion and transom combinations, e.g. curtain walls, winter garden, sky lights and special designs. Notch variation: rectangle, one sided angular, two sided angular, 3 sided angular.
Processing features:
The Prisma 650 is able to process standard profiles.
210mm
horizontal,
262 mm
vertical (90°)

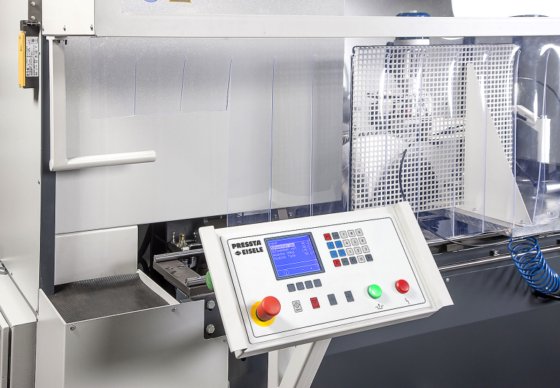

4-axis adjustment of saw blades positioning via electronic control panel
Notch height

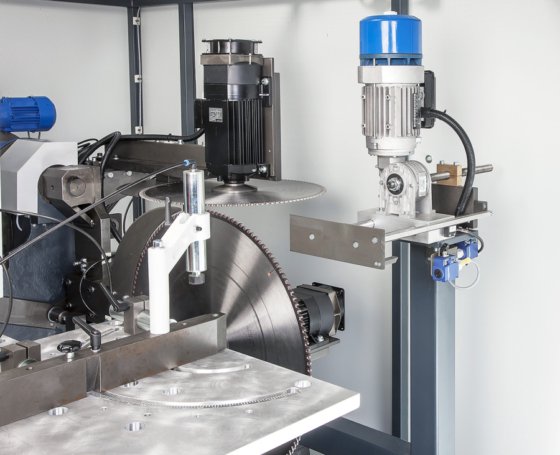

Swivel vertical blade
Swivel vertical and horizontal blade together
Material depth stop
Power adjusted notch height – positioning via control panel 0 – 260 mm
Power adjusted pivoting range saw blade vertical 90° – 60° + 30° (to front/to back)
Power adjusted pivoting range horizontal + vertical saw blade 90° + 45° – 45°
Pivoting range material fence on table manually left/right 30° – 90° – 45°,
positioning by scale
The Prisma 652 has an additional feature compared to its predecessor:
