Yamato CTA802 in Tokyo, Japan
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Stock number
- 221637
- System
- Integrated type, Air cooled electronic system, External open circulation
- Operating temperature range
- 0 to ＋70℃
- Temp. adjustment accuracy
- ±0.1℃
- Cooling capacity
- 163 kcal/h (189W)
- Performance pump capacity (50 hz) maximum flow ratemax. flow (50/60hz)
- 11 L/min
- Performance pump capacity (50 hz) maximum discharge pressure
- 78.4kPa
- Timer function
- 1 min to 99 hrs 50 min, 100 to 9999 hrs (with time/clock switching function)
- Operation function
- Fixed temp., Auto-start, Auto-stop, Quick auto stop, Program (Max.99 steps, step separate,repeat, gradient), Program auto start
- Other functions
- Self diagnostics, Calibration offset, External temperature sensor switching, Power failure recovery mode, RS485 external communication, Alarm output terminal, Key lock, Display the amount of Power consumption, Operation guidance
- Safety unit
- Over current electric leakage breaker, Abnormality detection (Temp. sensor, Overheat, Peltier, Temp. upper / lower limit, Power supply, Internal communication, Memory)
- Material of cooling/heating unit liquid contact part
- Stainless steel (SUS304)
- Circulation port nipple diameter
- O.D.: 12.7mm
- Number of thermo module
- 8
- External dimensions（w×d×h mm）
- 371×440×380mm
- Remarks(dimensions)
- Integrated type
- Power source
- AC115V 6A Single-phase with step down transformer
- Weight
- 35kg
- Subcategory
- Lab equpment
- Subcategory 2
- Water circulator
- Subcategory 3
- Cooling water circulator (externally opened circulation, coolnics series)
- Listing ID
- 57903346
Description
Water cooling heat dissipation system (CTW type) and air cooling heat dissipation system (CTA type) are available.
Features of Cooling Water Circulator (Externally Opened Circulation, Peltier Cooling) (CTA802)
Features

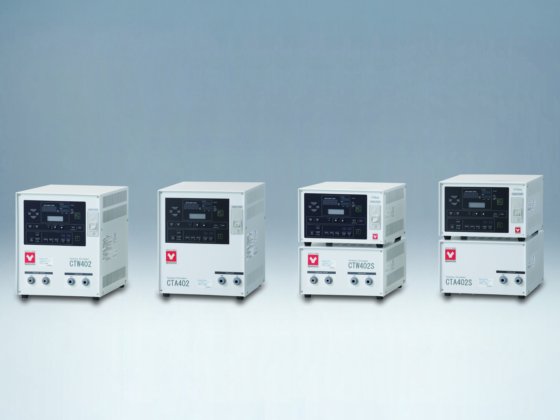

Integrated type (CTW402 / 802, CTA402 / 802) and Separated type (CTW402S / 802S, CTA402S / 802S) are selectable.
Features
External open constant temperature water circulator with separate cooling/heating assembly and power control assembly enables to control the constant temperature water precisely. It uses a Freonfree cooling system.
Features
The RS485 communication function is provided as standard and can be centrally managed from a PC.
