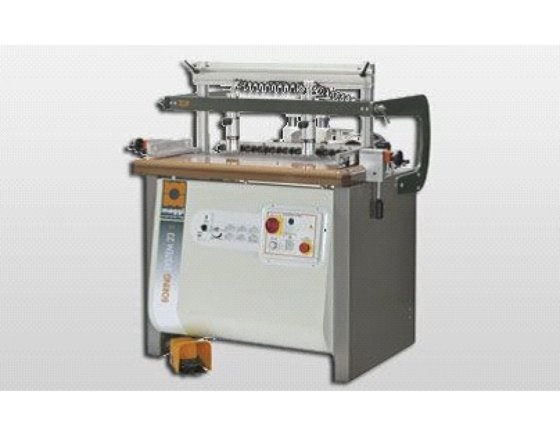

MAGGI Dowel Drilling Machine System 23 in Leipzig, Saxony, Germany
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Subcategory
- Boring machines
- Listing ID
- 54212016
Description

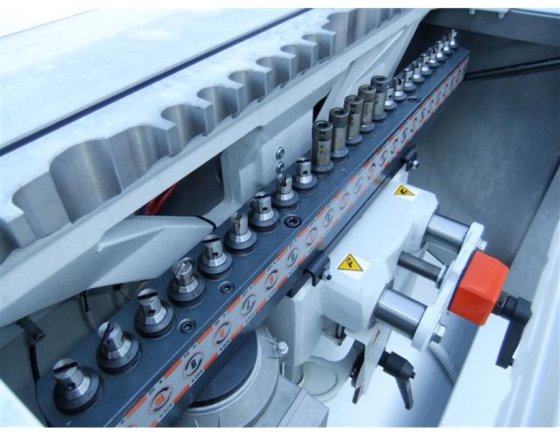

- drilling beam 23 spindles, pitch 32 mm
- working width 704 mm
- max. drilling depth 70 mm
- shank diameter of the drills 10 mm
- motor 1,5 kW, 400 V , 50 Hz
- spindle speed 2800 rpm.
- working table 1000 x 410 mm
- working height 850 mm
- working pressure 6-7 bar
- dimensions (LxWxH) 930 x 1040 x 1250 mm
- weight 310 kg
complete with:
- Spiral system, programmer and drill depth adjuster
- Quick change chuck
- Position adjustment of the side stops via digital counters
- 2 pieces of compressed air clamps
- Pneumatic swivelling of the drilling unit 0-90°.
- Angle error compensation system
- Stop ruler for line drilling 2 x 1500 mm
- 3 x folding stop
- Digital counter for setting the drilling height
- quick and easy folding of the side stops
- Foot pedal (clamping - drilling - releasing)
- 5 quick-action chucks
$6,239 USD
