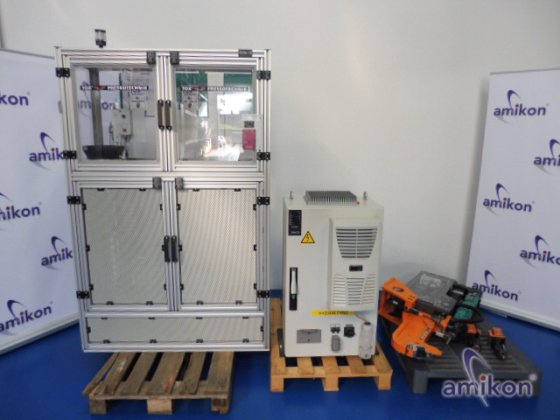

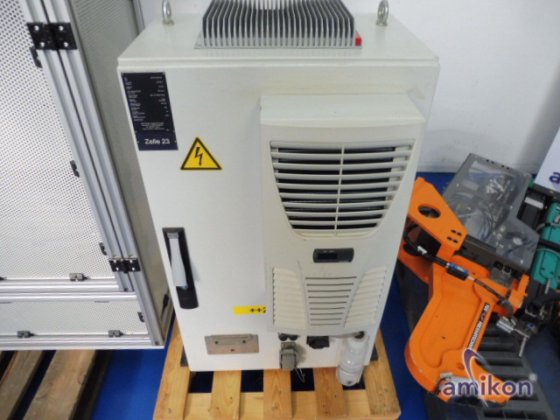

TOX- Full Punch Riveting System with Robot Tongs Riveting Tongs Type: TZ-VSN Riveting System in Borken, North Rhine-Westphalia, Germany
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Stock number
- 18636
- Content
- 1 piece
- Mass
- 200000 g
- Category
- Riveting Machines in Germany
- Subcategory
- Machinery
- Listing ID
- 42049445
Description

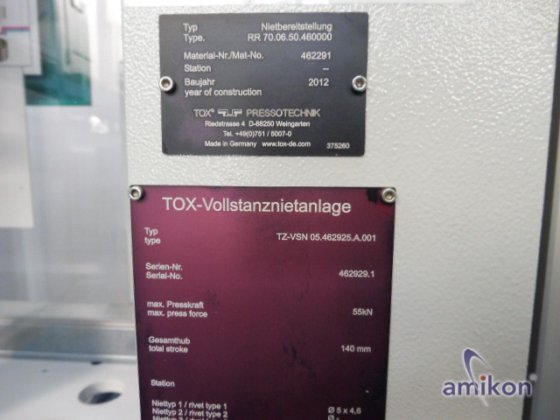

TOX
Type: TZ-VSN
TOX solid self-pierce riveting system
The solid self-pierce rivet first cuts through all joining partners and presses the punched slug out of the joint.
With the innovative technology for self-pierce riveting, TOX PRESSOTECHNIK,
the specialist for sheet metal connections, is adding a pioneering process to its range of products and services.
Self-pierce riveting offers an additional mechanical sheet metal connection,
which is of great importance for lightweight constructions and the joining of hybrid parts and assemblies.

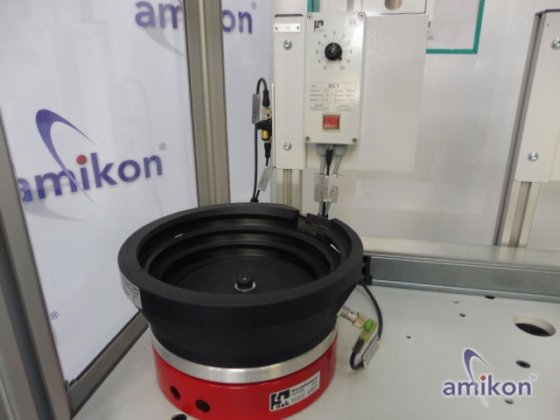

The rivet feeds, tongs and tool holders are also designed to be so universal,
that self-pierce rivets with diameters of 4.0 mm and lengths between 3.3 and 8.1 mm
as well as solid self-pierce rivets with diameters of 5.0 mm and lengths between 3.9 and 9.0 mm

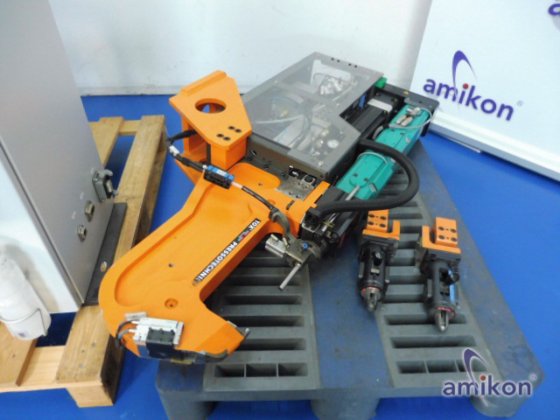

can be processed flexibly with TOX manual tongs as well as with TOX robot tongs.

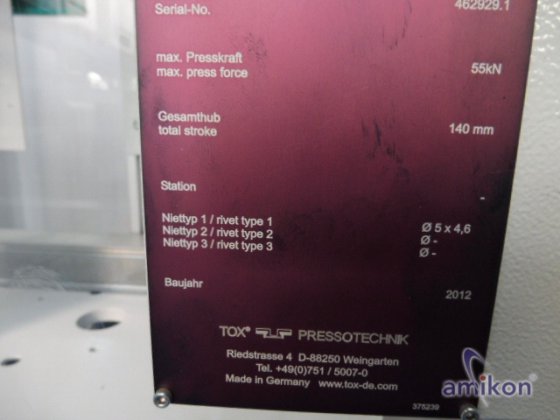

Pressing force 55KN
Total stroke 140mm
Rivet type: Diameter 5x4.6

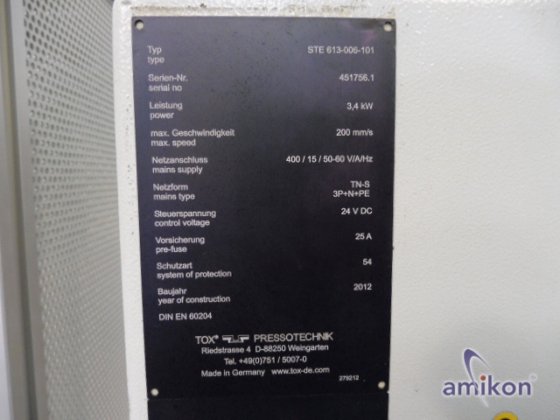

Connected loads
Power: 3.4KW
Mains connection: 400/15/50-60 V/A/Hz
Find more
$5,713 USD
