ATLANTIS in Cascina, Tuscany, Italy
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new

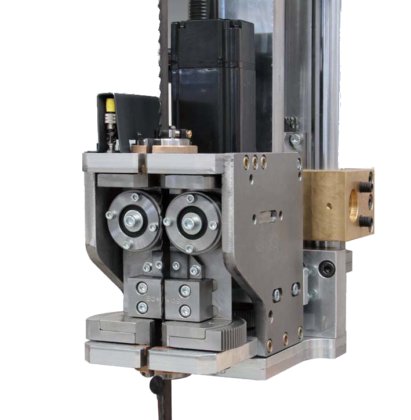

- C axis blade rotation
- ± 90°
- Cutting length
- 0 ÷ 1,500/2,500 mm
- Loading depth
- 1,350/1,500mm
- Cutting depth
- 750 mm
- Cutting height
- 0 ÷ 150 mm
- Minimum cutting radius
- 50 mm*
- Feeding speed
- 0 ÷ 25 m/min
- Category
- Saws in Italy
- Subcategory
- Cut
- Subcategory 2
- Vertical
- Listing ID
- 41099862
Description

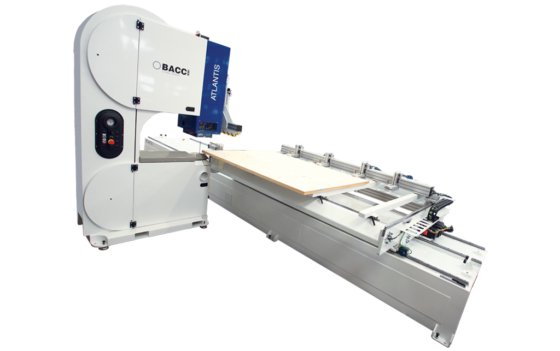

The ATLANTIS numerically controlled cutting center is equipped with 3 interpolated axes (X, Y, C) to create curved cuts on pieces of any size.
As precise and versatile as a CNC machine.
As productive as a line machine.
As simple to use as a traditional machine.
Technical data:
* based on the blade equipped

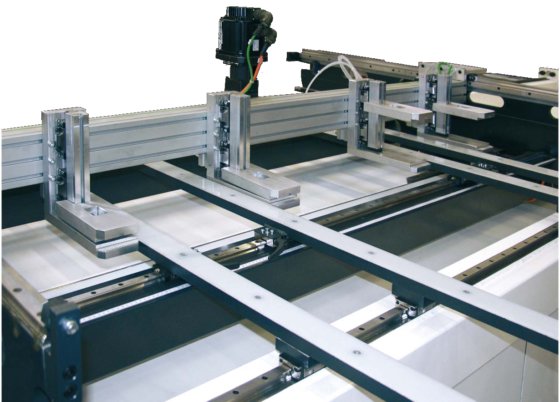

WORKING TABLE WITH CLAMPS
Working table with 2, 4 or more pneumatic clamps for handling panels. This working table has bi-directional movements along X and Y (one to reposition the clamps between one cut and the next and one that is interpolated with the other axes during cutting operations). Sawable panels 2,500 x 1,350 (optional 1,500) x 150 mm.

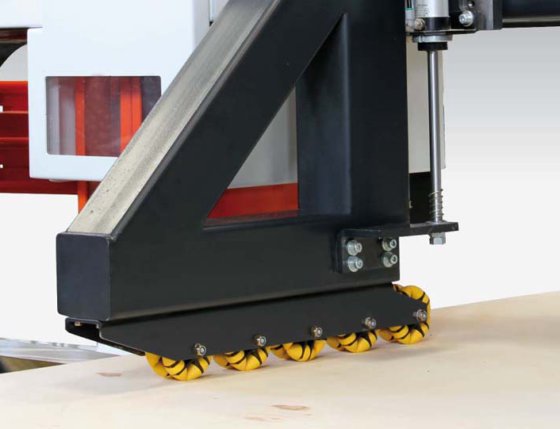

REMOVABLE MOTORIZED CARRIAGES
ATLANTIS may be equipped with a special system of motorized and controlled carriages that are applied above the panel support bars. Using this system, the pieces are blocked by 2 small sideways conveyor belts (patented), as shown in the photo. This system is recommended for cutting solid wood.
