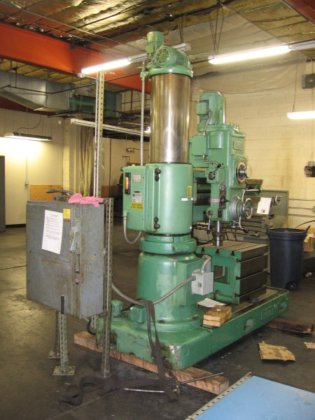

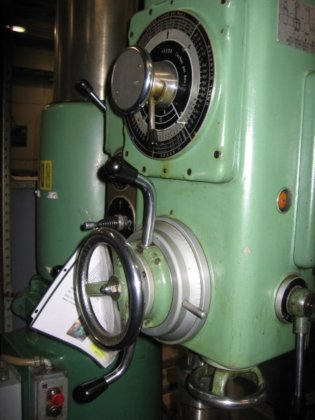

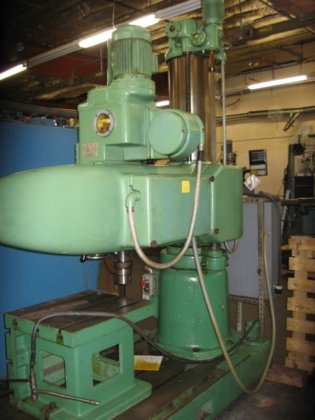

Summit 4’ x 12” Radial Drill in Rochester, NY, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
Description
Drilling Capacity in Solid”: 2” -2 9/16”
Fine Thread-tapping Capacity: 2 9/16”-2 15/16”
Arm-useful Length: 49 ¾”
Maximum Drilling Radius: 55 ¾”
Minimum Drilling Radius: 15 ¾”
Maximum Distance between Spindle and Base: 52”
Minimum Distance between Spindle and Base: 13 5/8”
Vertical Movement of Arm: 26 3/16”
Column Diameter: 12 ½”
Spindle Speed Range Standard: 35 – 1500 RPM
Feeds per Revolution of Spindle: .002” – .003” – .0047”, .008” – .012” – .016”
Spindle Travel : 12 3/16”
Spindle Diameter: 2 ¾”
Morse Taper in Spindle: 5
Arm Rotation: 360 degree
Spindle Motor 60 Cycle: 6/4.25 HP
Clamping Motor 60 Cycle: 0.95 HP
Coolant Pump Motor 60 Cycle: 0.15 HP
Arm-raising Motor 60 Cycle : 1.5 Hp
Total height of the Machine: 101”
Approximate net with work Table: 6830 Lbs.
Good Condition
$4,500 USD
