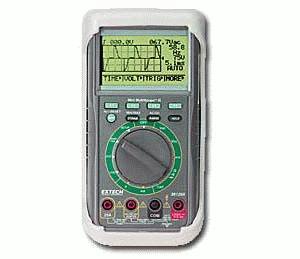

Extech Digital Multi 381265 in New Smyrna Beach, FL, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Vdc high range
- 1.0kV
- Digits
- 3.75
- Measurements
- DCV, ACV, Resistance, Continuity, Diode, DCA, ACA, Frequency, Capacitance, Period, Duty cycle, Pulse, dBm
- Category
- Multimeters in USA
- Subcategory
- 1.0 kv
- Subcategory 2
- Test, lab, medical equipment
- Subcategory 3
- Meters - digital multimeters
- Listing ID
- 37489526
Description
Oscilloscope graphical functions: Single channel, volts/division, Amps/Division, 500ns Glitch Capture
High sensitivity allows user to capture low level signals
Oscilloscope Bandwidth: DC to 100kHz with a sample rate of 1 Million Samples/sec
Graphical display of mV, Volts, mA, Amps
Oscilloscope display: 128 x 64 pixel graphic LCD with adjustable trigger level and slope
Comparator function with user defined MIN/MAX levels allows the user to perform HIGH/LOW/PASS tests in Voltage, Current, Resistance and Capacitance modes
Meter functions also include Logic Signal mode for TTL and CMOS
LCD with bargraph and data hold
Record and recall MIN/MAX/AVG readings with time stamping
Overrange indication and auto power off
Store and recall 15 waveforms
100kHz Mini Multiscope
