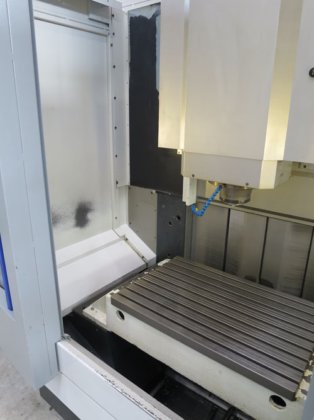

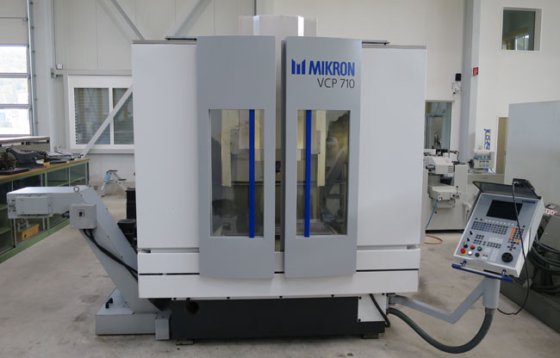

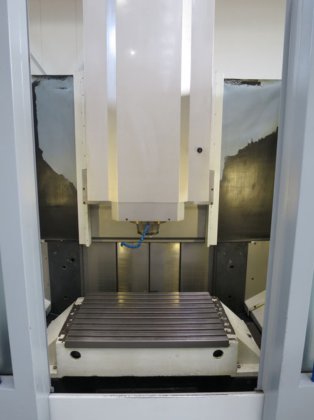

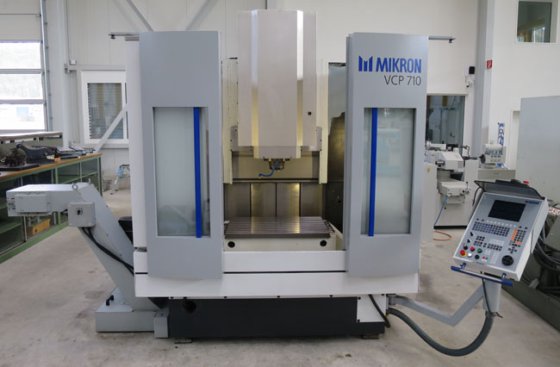

1999 MIKRON VCP 710 in Beringen, Schaffhausen, Switzerland
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Year
- 1999
- Stock number
- 4477
- With cnc continuous path control
- HEIDENHAIN
- With cnc continuous path control model
- TNC430
- For axes
- 3
- X axis longitudinal travel
- 710 mm
- Y axis cross travel
- 500 mm
- Z axis vertikal travel
- 500 mm
- Table clamping surface width x depth
- 1080x580 mm
- Number of tooling
- 30
- Max. tool diameter
- 90 mm
- Max. tool diameter with free neighbour place
- 140 mm
- Max. length of tool
- 300 mm
- Max. weight of tool
- 8 Kg
- Spindle taper sk
- 40
- Spindle speeds inf. variable from - up to
- -10000 U/Min.
- Spindle motor
- 12/16 KW
- Feed inf. variable
- -15/-20 mm/Min
- Rapid movements
- 30 m/min.
- Working current voltage
- 400 Volt
- Size of machine width/depth/height approx
- 450x280x310 cm
- Weight approx
- 10000 Kg
- Coolant through spindle pressure
- 20 bar

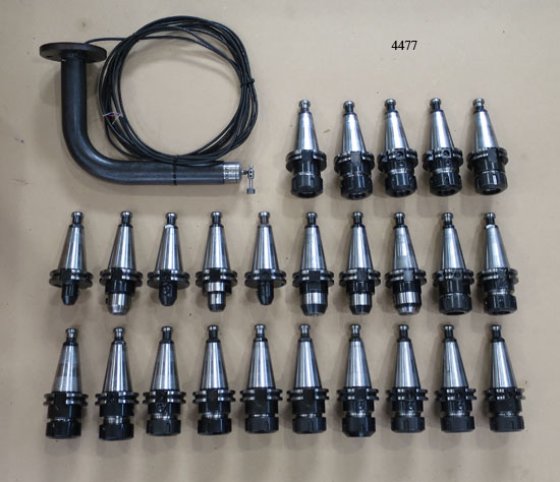

- Milling arbors no
- 25
- Category
- Milling Machines in Switzerland
- Subcategory
- Cnc vertical machining centres
- Listing ID
- 35801221
Description
Contact the seller for more information about this listings.
