Ovation Grid-Lock Board Support in Magnolia, TX, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
Description

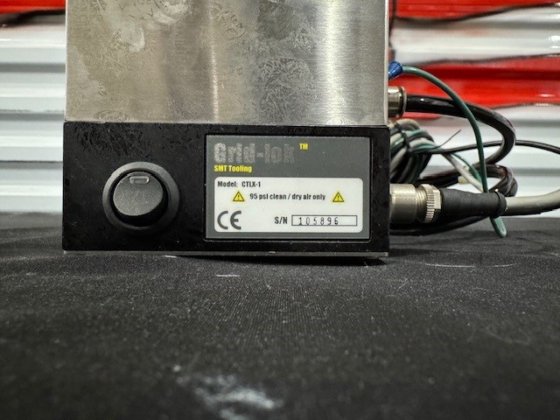

Model: CTLX-1

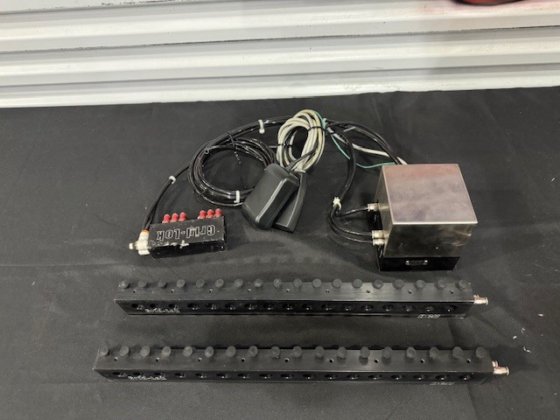

Includes (2) 18" Support Bars

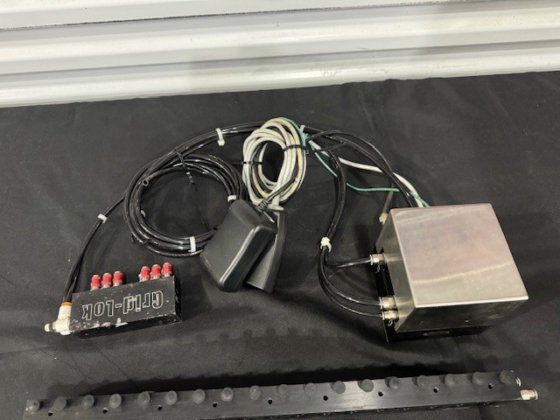

Includes Controller, Pendant, & Manifold
*About Grid Lock
Designed to accommodate assemblies of all types – from basic SMT through to high-density, highly miniaturized products –
Grid-Lok is the ideal support mechanism for the entire assembly process from screen printing to component placement to inspection.
With a set up time of less than 20 seconds, minimal operator intervention required and system control handled independently of the host
machine, Grid-Lok is the simple, fast solution for advanced board support.
*System Components:
Control box to provide module(s)-machine
interface
Hand controller to set
operating mode
Up to 6 Grid-Lok modules
Field installation kit
Manifold used to support up to 6 modules
Machine-specific fitting tools
Machine-specific interface (sensor or
pneumatic input to start the pin raise and
clamp cycle)
All interconnecting hardware
Standard Grid-Lok system carton size
53x42x30cm, approximately 12Kg
