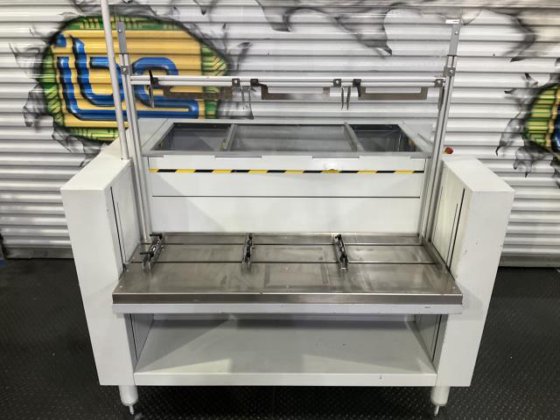

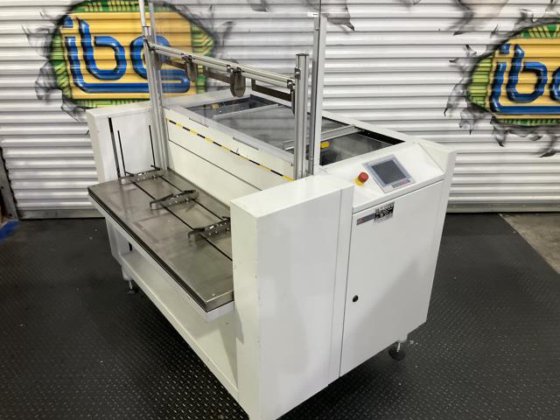

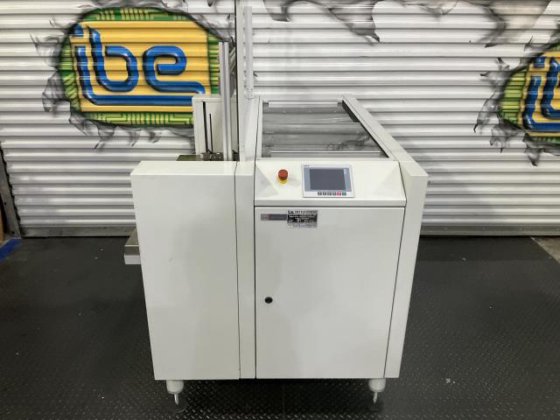

2017 ASYS AMS 03D Mag Loader in Magnolia, TX, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Year
- 2017
- Stock number
- 250527-012
- Category
- PCB Assembly in USA
- Subcategory
- Conveyors
- Listing ID
- 35281319
Description
Model: AMS 03D
Right to Left Board Flow
11" Max Board Width
3 Magazine Capacity
ASYS AMS 03D Mag Loader Specification:
*Description:
PCB’s arriving from the transfer conveyor are transported
with a shuttle mechanism into position for one of the
magazines.
An electrically powered pusher then slides the PCB’s
into the respective magazine.
*Features:
_ Automatic switching to the second magazine
_ Transfer conveyor with integrated shuttle mechanism
_ Magazine platform vertically aligned using a tension clamp
_ Different magazines can be used without the need
for unit modification
_ Programmable transfer position allows for flexible
installation of the unit
_ Access to the magazine on the open side of the unit
*Options:
_ Magazine adaptation
_ Electrical width adjustment
_ Automatic width adjustment
_ Multiple insertion
_ Universal magazine clamp
_ Control function on inlet conveyor
_ Flexible Dual lane
*Machine Configuration:
Transport height - 850 mm ± 50 mm
Max. transport width - 460 mm
