Kent KTM-3VSF #8134 in Baltimore, MD, USA
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Stock number
- 8134
- Table size
- 9″ x 49″ (Opt. 9″ x 42″)
- Table travel (x-axis)
- 31″ (Opt. 24″ / 28″)
- Saddle travel (y-axis)
- 11″
- Knee travel (z-axis)
- 15″
- Quill travel
- 4″ with MillPwr G2 CNC Control
- Ram travel
- 14 1/2″
- Spindle speed
- AC Frequency Drive Head, 60 – 550 – 4,500 RPM
- Spindle taper
- R-8
- Quill diameter
- 3.375″
- Quill feed rate
- 0.0015″ / 0.003″ / 0.006″ /rev.
- Drilling capacity (manual / power)
- 0.75″ / 0.37″ Diameter
- Boring capacity
- 6″ Diameter
- Milling capacity
- 2.0″ /Min.
- Max. work load
- 850 lbs.
- Spindle nose to table surface
- 3 1/4″ – 18 1/4″
- Spindle center to column
- 5″ – 19 1/2″
- Motor
- 3 HP / 220v / 3ph
- Shipping dimensions
- 72″ x 72″ (Skid)
- Shipping weight
- approx. 2,800 lbs.
- Please note
- This Model is Available with a 2-Axis or 3-Axis CNC Control
- Category
- Milling Machines in USA
- Subcategory
- Cnc machines
- Subcategory 2
- Cnc mills & machining centers
- Listing ID
- 33381678
Description

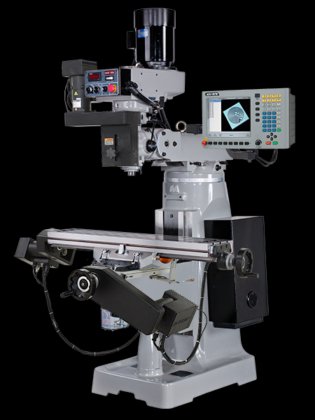

Kent 9″ x 49″ CNC Knee Mill with Acu-Rite MillPwr G2 Control, KTM-3VSF
Inventory # 8134
Kent’s industry-leading CNC mill with the Acu-Rite MillPwr G2 control bring powerful CNC capabilities to the tool room with easy-to-learn conversational programming and advanced canned cycles to empower everyone on the shop floor with greater productivity
This versatile system can be operated manually like a full-function DRO with intelligent power feeds, or automatically with easy-to-use conversational shop floor programming for full CNC operations. Additionally, you can import and run G-code files from CAD/CAM programs. This enables you to machine full 3D contoured parts
These CNC mills are the new industry standard for ease of use, machining flexibility, and reliable performance. They are well-suited for tool rooms and job shops, from prototyping or one-offs to small and medium production runs
(Opt. 440v power requires 5A, but can also accept 220v /1ph power without a phase converter)
