2002 IFT BCF Fiber Extrusion Line in Williamston, SC, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Year
- 2002
- Stock number
- 16848
- Category
- Yarn Manufacturing in USA
- Subcategory
- Extrusion / fiber processing equipment and machinery
- Listing ID
- 31918513
Description
(3) Colortronic 2 component blenders with loader and panel.
(3) DAVIS STANDARD Extruders DS-15H, 1.5" x 30:1 L/D.
Spin Manifold.
(3) pumps and drive systems.
Quench system
Finish application system, 12 outlet with metered heads.
Draw Texturing Panel for 12 threadlines, consisting of:
Preheat godets.
Heated draw godets, 180mm x 270mm long, 185 deg C, 4000 mpm.
Four end split texturing jets.
Cooling drum assembly.
Take-off roll with separator.
String up aspirator.

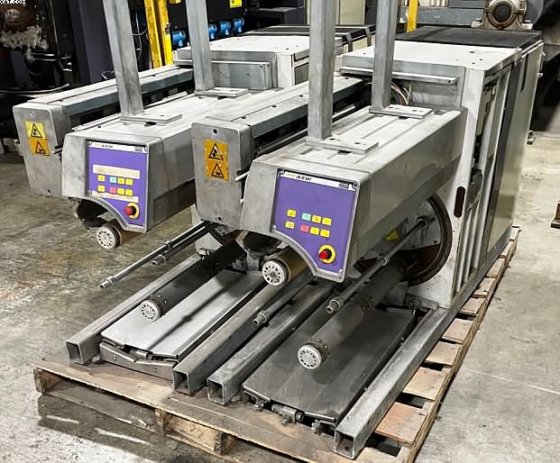

(2) Barmag ASW 602 spindle driven turret winders, 2500 mpm, 73mm ID, 2x 250mm packages. Includes (1) spare winder used for parts.
IFT and Quad Plus Electrical Control panels for heat control and drive systems.
STEELMAN Pre-Heat Oven, Model 222EBHT650, 12kw, 480v, 8 cu ft, 20x24x23", 650 deg.
Footprint approximately 16? x 22? x 27?H.
Last running recycled nylon 6. Reported capacity ~130 pph on 1200 denier and ~200 pph on 1900.

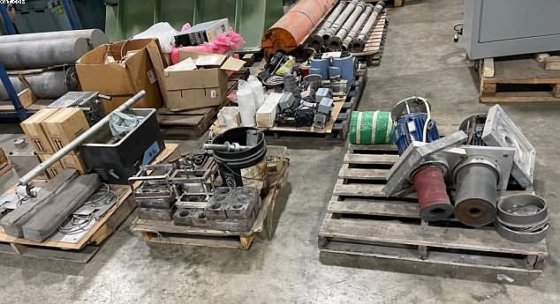

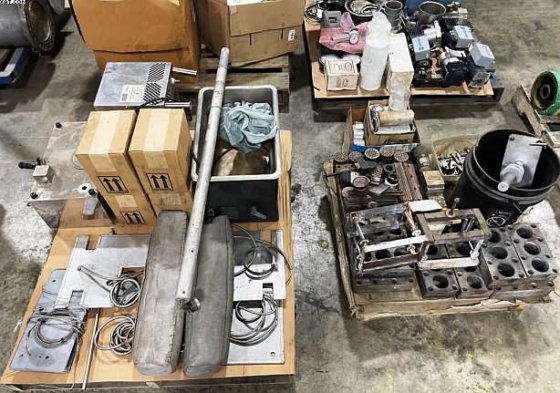

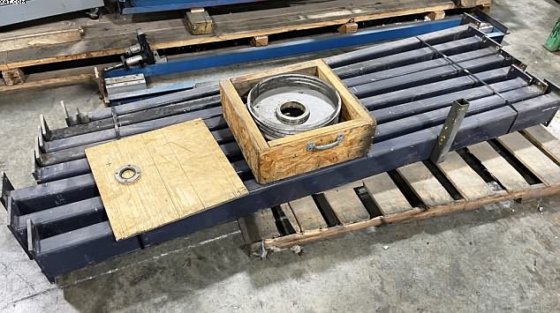

Includes manuals, drawings, & spare parts.
