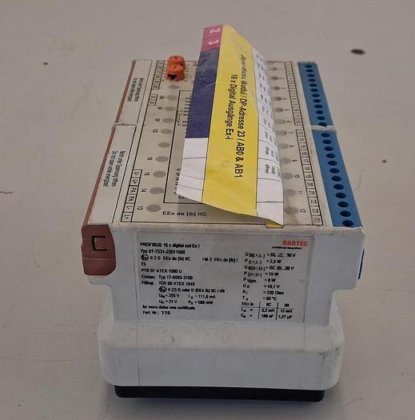

Bartec Modex PROFIBUS module with DP address 23 digital Ex-i output module with 16 channels in Grenzach-Wyhlen, Baden-Württemberg, Germany
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Stock number
- 7785358
- Space-saving
- Compact housing for DIN rail mounting
- Type
- 07-7331-2301/00
- Serial number
- 115
- * power consumption
- about 111 mA
- * power
- approx. 2.5 W
- * communication
- PROFIBUS-DP
- * dp address
- 23
- * process image
- AB0 & AB1
- * exits
- 16 digital Ex-i channels
- * atex approval
- PTB 02 ATEX 1096
- * assembly
- DIN rail
- * origin
- Made in Germany
- Category
- Input/Output Modules in Germany
- Subcategory
- Electrical appliances
- Listing ID
- 110055392
Description
The Bartec Modex PROFIBUS module with DP address 23 is a digital Ex-i output module with 16 channels for use in explosion-hazardous areas (Zone 1/2). It provides reliable control of actuators such as valves or lights – directly via PROFIBUS-DP (AB0 & AB1). The module is ideally suited for automation tasks in safety-critical environments.
The system consists of the parts shown in the pictures.
Advantages:
-
Certified explosion protection: II 2G EEx de [ib] IIC T5
-
16 digital Ex-i outputs: For secure signal transmission in Ex-zones
-
Easy integration: PROFIBUS-DP, mapping to AB0 & AB1
-
Status monitoring: Diagnosis LEDs for ON, BF, SF, U2
-
Space-saving: Compact enclosure for DIN rail mounting
---------------------------------------------------------------
2. General functions
- Control of up to 16 actuators (e.g., solenoid valves, optical sensors)
- Ex-d protection type for use in Zone 1 / 2
- Galvanic isolation between bus, supply and outputs
- PROFIBUS-DP communication with fixed address (DIP 23)
- Output monitoring and LED diagnostic functions
- High availability through robust construction
---------------------------------------------------------------
3. CO₂ savings
Using this used Ex-module instead of a new device saves substantial resources—especially with ATEX-certified equipment with special components.
♻️ Estimated CO₂ savings: 200 – 280 kg CO₂
That corresponds to approximately 950 – 1,000 km Driving or about the annual energy consumption of a refrigerator in energy class C.
---------------------------------------------------------------
4. Device details (type plate data in German)
Manufacturer: Bartec GmbH
Model: PROFIBUS 16 x Digital Out Ex-i
Type: 07-7331-2301/00
Serial number: 115
Technical specifications:
-
Supply voltage: 18 – 30 V DC
-
Power consumption: approx. 111 mA
-
Perfomance: approx. 2.5 W
-
Communication: PROFIBUS-DP
-
DP address: 23
-
Process image: AB0 & AB1
-
Exits: 16 digital Ex-i channels
-
Certification: II 2G EEx de [ib] IIC T5
-
ATEX approval: PTB 02 ATEX 1096
-
Temperature range: -20 °C to +60 °C
-
Assembly: DIN rail
-
Origin: Made in Germany
-
Condition: Used, functionally tested, with normal signs of wear
