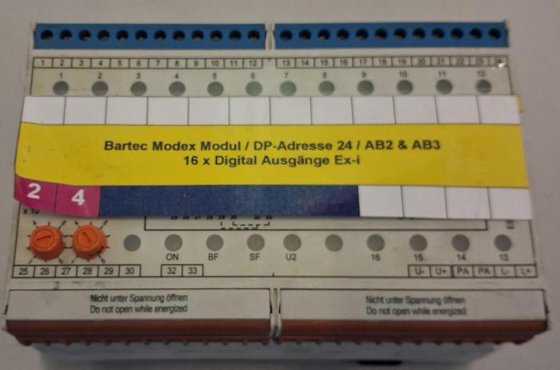

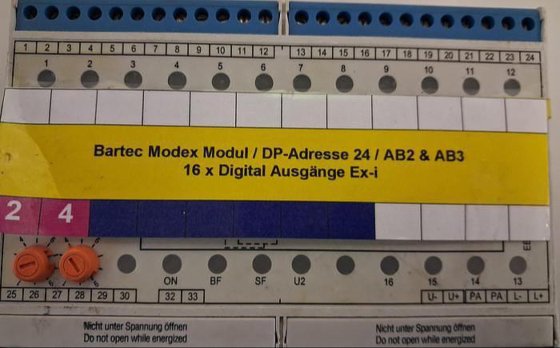

Bartec Modex PROFIBUS DP module with DP address 24 is a digital Ex-i output module in Grenzach-Wyhlen, Baden-Württemberg, Germany
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Stock number
- 7785355
- * robust construction
- DIN rail mounting, industrial-grade
- Model
- Digital Out Ex-i module
- Type
- 07-7331-1000 / 07-6583-3100
- * power consumption
- max. approx. 110 mA
- * bus
- PROFIBUS-DP
- * dp address
- 24
- * process image
- AB2 & AB3
- * channels
- 16 digital outputs Ex-i
- * atex certificate
- PTB 00 ATEX 1649
- * origin
- Made in Germany
- Category
- Input/Output Modules in Germany
- Subcategory
- Electrical appliances
- Listing ID
- 110055091
Description
The Bartec Modex PROFIBUS DP module with DP address 24 is a digital Ex-i output module for safe operation in explosive atmospheres in Zone 1/2. Equipped with 16 digital Ex-i outputs this module is ideally suited for controlling actuators in safety-relevant process environments. Communication is via PROFIBUS-DP (AB2 & AB3).

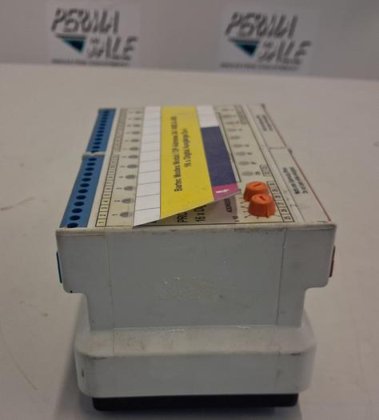

The system consists of the parts shown in the pictures.
Advantages:
-
Ex-certified: For Zone 1/2 according to ATEX II 2G EEx de [ib] IIC
-
16 digital outputs (Ex-i): For valves, relays, optical signal devices and so on.
-
Communication: PROFIBUS-DP capable (AB2 & AB3)
-
Status indicators: Integrated diagnostic LEDs (ON, BF, SF, U2, OUT)
-
Robust construction: Rail mounting, industrial suitability
---------------------------------------------------------------
2. General functions
- 16 digital Ex-i outputs for actuators in explosion-hazard areas
- Compatible with common controllers via PROFIBUS-DP
- Addressable via DIP switch (Address 24)
- Integrated short-circuit monitoring
- Potential separation
- Housing for standard DIN rail (DIN EN 60715)
---------------------------------------------------------------
3. CO₂ savings
By reselling this digital old module, CO₂-intensive new production is avoided. Based on experience values:
♻️ Estimated CO₂ savings: 200 – 280 kg CO₂
This corresponds approximately to the CO₂ emissions of a 950 km car trip with a mid-range vehicle.
---------------------------------------------------------------
4. Device details (type plate data in German)
Manufacturer: Bartec GmbH
Model: Digital Out Ex-i module
Type: 07-7331-1000 / 07-6583-3100
Serial number: Not fully readable
Technical specifications:
-
Tension: 18 – 30 V DC
-
Power consumption: max. approx. 110 mA
-
Perfomance: approx. 2.5 – 3 kW
-
Bus: PROFIBUS-DP
-
DP address: 24
-
Process image: AB2 & AB3
-
Channels: 16 digital outputs Ex-i
-
Ex protection: II 2G EEx de [ib] IIC T4
-
ATEX certificate: PTB 00 ATEX 1649
- Approval for Zone 1/2
-
Temperature range: -20 °C to +60 °C
-
Origin: Made in Germany
-
Condition: Used, technically inspected, optical signs of wear present
