Multi-Function Dual-Spindle Tapping Machine for Prototype and Batch Production in Guangdong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- on Line and on Site Service
- Forging forming method
- Mold Forging
- Power source
- Pneumatic
- Feature
- Automation
- Certification
- ISO9001
- Customized
- Customized
- Advantage
- Use Widely
- Spindle number
- 2 Spindle
- Size
- M12-M22
- Tapping accuracy
- ±0.01mm
- Capacity
- 100
- Cooling pump
- 370W
- Brand
- Taichuang
- Weight
- 2250kg
- Spindle
- 2
- Main motor
- 5.5kw
- Moq
- 1
- Descrption
- Nut Tapping Machine
- Baiting angle
- 28
- Power switch
- Idce
- Transport package
- Polywood
- Specification
- 2800X1700X1900mm
- Category
- Foundry & Casting in China
- Subcategory
- Metal forging machinery
- Subcategory 2
- Metallic processing machinery
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 110051717
Description
Product Description

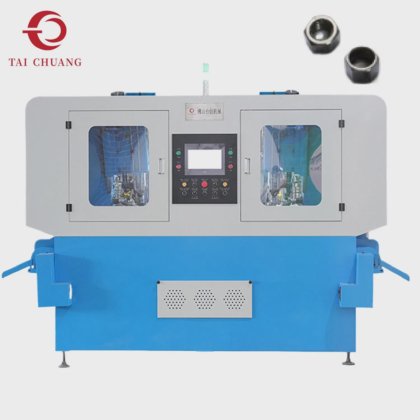

TCST-22RS-2-SSF 22 Dual - Spindle Vertical Reciprocating Tapping Machine
Product Overview
TCST-22RS-2-SSF is a high - performance dual - spindle vertical reciprocating tapping machine. It is designed for efficient tapping operations, suitable for processing threads in the M12 - M22 range, with both pneumatic and hydraulic clamping options to meet diverse production requirements.
Core Parameters
- Tapping Head:
- Slide stroke: 0 - 180mm; Spindle stroke: 0 - 120mm; Number of spindles: 2; Feed ball screw: SFNUR2005X326
- Feeding Track: Down - angle: 28 degrees
- Fixture Mode: Rotary table fixture, maximum diameter of rotary table: Φ230
- Cylinders: Feeding cylinder (AIRTAC MA32X100SCA); Clamping cylinder (AIRTAC SDA80X50SB for cylinder, D32X50SB for oil cylinder)
- Machine:
- Production efficiency per spindle: 10 - 20pcs/min; Cooling pump motor: Power 370w, flow 120L/min; Hydraulic unit motor: Power 0.75kw, displacement VP15; Overall dimensions: 2800X1700X1900;
