Mars Linear Automatic Tool Change CNC Router Machine in Anhui, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Certification
- ISO, CE
- Cnc or not
- CNC
- Voltage
- 380V
- Configuration
- 9KW air cooling spindle + Circular tool change
- Table surface
- T-Slot and Vacuum Working
- Drive motor
- Yaskawa
- Max. traveling speed
- 60m/min
- Table structure
- Vacuum table
- Transmission
- X/Y axis helical rack & pinion, Z axis ball screw
- Spindle
- 9.0kw Italy Air Cooling Spindle
- Software
- Ucancam / Artcam/Type3/Power Mill
- Operating system
- Taiwan Syntec Windows Control System
- Warranty of core components
- 2 Year
- Machinery test report
- Provided
- Max travelling
- 80 M/Min
- Max working speed
- 30 M/Min
- Spindle rotary speed
- 0-24000 R/Min
- Linear
- Linear Type Tools Change Magazine
- Transport package
- Wooden Case
- Specification
- 1230*2450*200mm
- Hs code
- 8458110090
- Production capacity
- 500/Month
- Working area
- 1230*2450*200mm
- Max. working speed
- 30m/min
- Spindle speed
- 24000r/min
- Working voltage
- AC380/3PH/50HZ
- Control system
- Syntec
- Category
- Woodworking equipment in China
- Subcategory
- Woodworking machinery
- Subcategory 2
- Woodworking engraving machine
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 109667737
Description

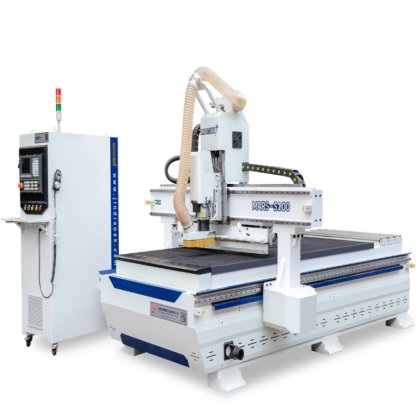

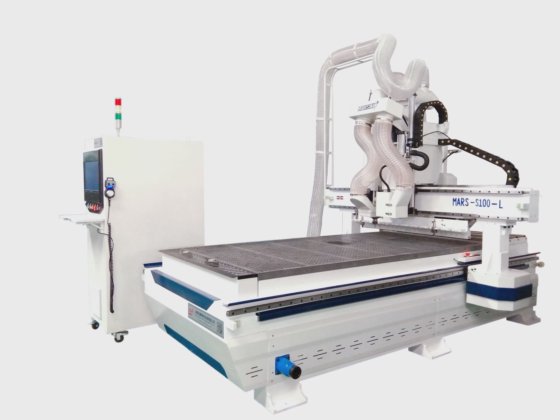

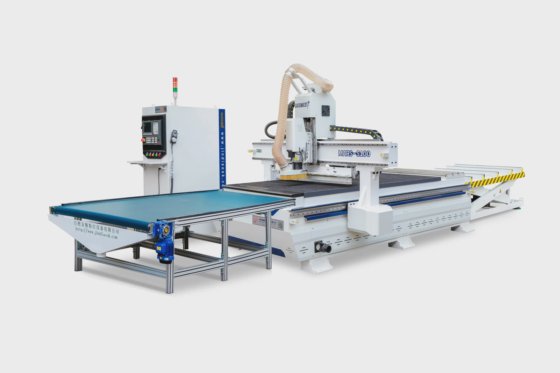

MARS S100 Quality Nesting Cnc Router Wood Engraving Atc Cnc Milling Machine
Feature

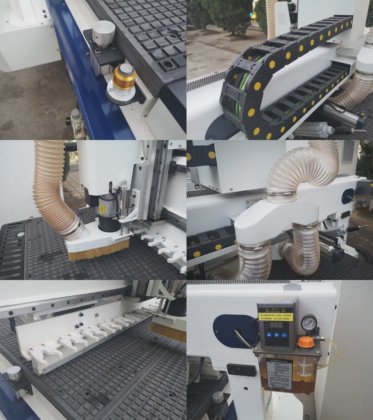

Linear Type Tools Change Magazine
Taiwan Rail
It is mainly used for cutting, perforating, slotting, and one-time processing of special shapes in custom-made panel furniture enterprises. It can also be used for multi-process modeling processing of home improvement or cabinet door panels.
The bed is welded by thick steel pipes. After high-temperature tempering, it is processed by CNC gantry machining center at one time, and the structure is stable and never deformed.
The three axes are all imported rectangular orbits imported from Taiwan, the Z axis is imported precision ball screws, and the XY axis is equipped with ground gear racks and imported high-precision helical gear reducers. The Y axis is driven by double racks and double motors. The machine tool can run stably at high speed.
Products Parameter
Application:
