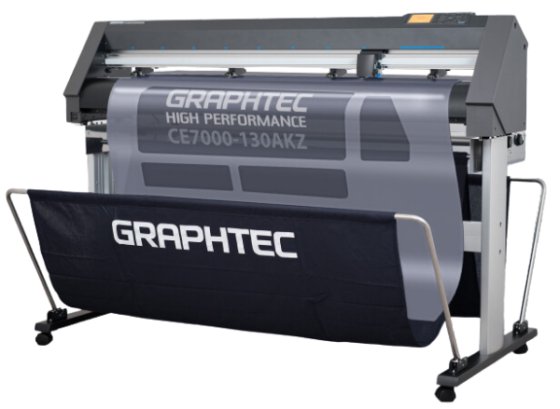

GRAPHTEC CE7000-130AKZ 50" Wide "E-Class" Cutter in Dallas, TX, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Configuration
- Grit roller with digital servo drive system
- Maximum cutting area (w x l)
- 50" x 164'
- Mountable media width
- 2" to 60"
- Number of push rollers
- 4 rollers
- Maximum cutting speed
- 39"/s, at 45º direction
- Maximum acceleration
- 45.60' (13.9 m/s2), at 45º direction
- Maximum cutting force
- 4.41 N (450 gf) in 38 steps
- Minimum character size
- Approx. 5 mm (0.016") alphanumeric (varies depending on character font and type of media)
- Programmable resolution
- GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm
- Mountable number of tools
- 1 tool
- Blade type
- Supersteel
- Media type
- Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 25 mil (.63mm)
- Interface
- USB 2.0 (Full Speed), Ethernet10BASE-T/100BASE-TX
- Buffer memory
- 2 MB
- Command sets
- GP-GL / HP-GL™ (Set by command or auto-detect)
- Display
- Graphic type LCD with back-light (240dots x 128dots), supports 10 languages
- Registration marksensing system
- Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation, 4-points axis alignment, Auto mark detect
- Alignment accuracy
- Maximum 0.3 mm with printed image(when reading registration marks specified by this machine)
- Power source
- 100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz
- Power consumption
- 120 VA
- Operating environment
- 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
- Guaranteed accuracy environment
- 16 to 32 ºC, 35 to 70 % R.H. (non-condensing)
- External dimensions (w x d x h)
- 67" x 45.2" x 48"
- Weight
- 121 lbs (54.9 kg)
- Compatible os (*2)
- Windows 11 /10 / 8.1 / 64-bit editionsMac OS 10.2 (Sierra) to 13 (Ventura)
- Included software (download)
- Graphtec Studio 2, Cutting Master 5 for Windows and Mac
- Compatibility standards
- Safety
- Emc
- VCCI Class A, FCC Class A, CE mark
- Category
- Digital Cutting in USA
- Subcategory
- Cutters
- Listing ID
- 108038143
Description
GRAPHTEC CE7000-130AKZ 50" Wide "E-Class" Cutter with Stand, Basket, 2 Antistatic Strings, 4 Magnets, 2 Tint
Description
The Graphtec CE7000-130AKZ cutter has been specifically designed for the aftermarket automotive industry. Modified for the streamlined cutting of Window Tint Film, Paint Protection Film, Paint Masking, Pinstriping Graphics and similar applications, this versatile cutter will boost your productivity to the next level. A heavy duty precision servo motor delivers accurate cutting speeds of up to 39 inches per second with an unsurpassed 15 feet of tracking.
CE7000-130AKZ Highlighted Features:
Impressive 450 Grams of Downforce
Blazing fast 39 inches-per-second cutting speed
Precise loupe for easy blade adjustment
Open software platform
Ethernet connectivity
USB thumb drive connectivity - no computer needed!
The CE7000-130AKZ boasts GRAPHTEC's popular cutting channel to allow easy perforated cut or through cut operations. This powerful cutter comes with GRAPHTEC's full complement of Graphtec Software including Cutting Master 4 plug in for Adobe and Corel Users and their ever-popular Graphtec Pro Studio software for design and cut graphics. CE7000 series works with both PC and MAC platforms or use the handy new USB Thumb Drive Port if needed.
Technical Specifications
$5,295 USD
