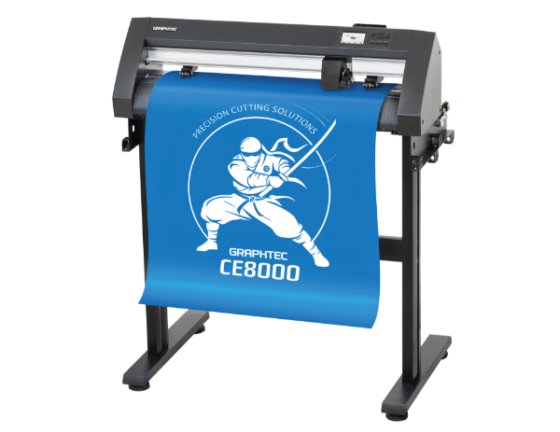

GRAPHTEC CE8000-60 24" Wide "E-Class" Cutter in Dallas, TX, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Configuration
- Grit roller with digital servo drive system
- Maximum cutting area (w x l)
- 15" x 164'
- Cutting area of guaranteed accuracy
- 14" x 79"
- Mountable media width
- 2"19"
- Number of push rollers
- 2 rollers
- Maximum cutting speed
- 24"/s, in all directions
- Maximum acceleration
- Max. 21.2 m/s2 (2.2G) at 45º direction
- Maximum cutting force
- 4.41 N (450 gf)
- Minimum character size
- Approx. 5 mm (0.016") alphanumeric (depending on character font and type of media)
- Programmable resolution
- GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm
- Repeat-ability
- Max. 0.1 mm in plot up to 2 m (*1)
- Mountable number of tools
- 1 tool
- Blade type
- Supersteel
- Pen type
- Oil-based ballpoint, Water-based fiber-tip pen
- Media type
- Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 25 mil (.63mm) Stencil material
- Interface
- USB 2.0 (Full Speed) • Wireless LAN • 10BASE-T/100BASE-TX
- Buffer memory
- 2 MB
- Command sets
- GP-GL / HP-GL™ (Set by command or auto-detect)
- Display
- Touch Panel Screen (240-dot x 128-dot), supports 10 languages
- Registration marksensing system
- Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation, 4-points axis alignment, Auto mark detection
- Alignment accuracy
- Maximum 0.3 mm with printed image (when reading specified registration marks)
- Power source
- 100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz
- Power consumption
- 120 VA
- Operating environment
- 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
- Guaranteed accuracy environment
- 16 to 32 ºC, 35 to 70 % R.H. (non-condensing)
- External dimensions (w x d x h)
- Approx. 26.65" x 17.76" x 10.5"
- Weight (approx.)
- 24.25 lbs (11kg)
- Compatible os (*2)
- Windows 11 /10 / 8.1 / 64-bit editionsMac OS 10.2 (Sierra) to 13 (Ventura)
- Included software (download)
- Graphtec Studio 2, Cutting Master 5 for Windows, and Mac
- Compatibility standards
- Safety
- Emc
- VCCI Class A, FCC Class A, CE mark
- Category
- Digital Cutting in USA
- Subcategory
- Cutters
- Listing ID
- 108038128
Description

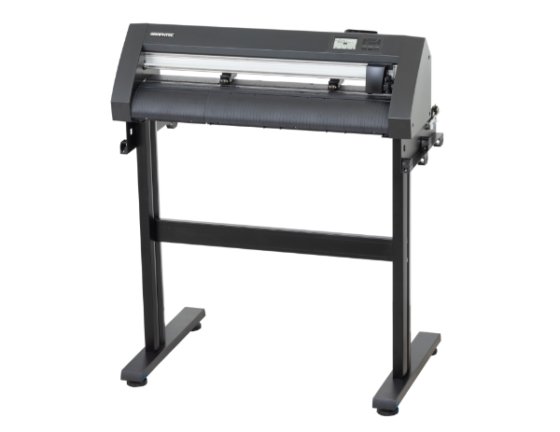

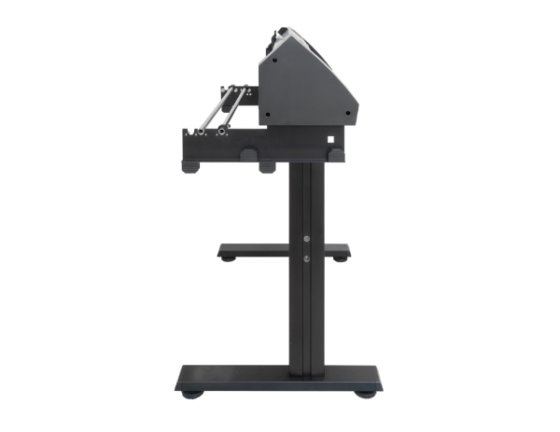

GRAPHTEC CE8000-60 24" Wide "E-Class" Cutter with Stand without Ethernet
Description
Introducing the NEW Graphtec CE8000 Series, the go-to solution for boosting production efficiency for Signage and Vinyl Graphics, DTF Apparel, PRINT & CUT, POP & Packaging, Automotive Markets, and more.
Compared to its predecessor, the CE7000, the CE8000 boasts Enhanced Rigidity for better feeding and cutting performance.
New Wireless LAN capability adds convenience and flexibility, allowing seamless connectivity in various work settings. Plus, it's equipped with the reliable Registration Mark Sensing System (ARMS) carried over from the CE7000 for precise operation.
Supercharge your Production Capabilities with the Graphtec CE8000 Series—the perfect solution for streamlined workflows with exceptional results.
New Feature Highlights:
A
NEW TOUCH PANEL
with
MECHANICAL KEYS
gives users more flexibility with its
Blind Touch Operation
enabling the operator to continually keep eyes on media while feeding.
NEW Wireless LAN:
The CE8000 includes a wireless connection module which improves flexibility of installation locations.
NEW Tool Holder:
Improved design makes it easier to change tools and blade position by sliding the stopper forward and back.
Pressure Adjustable Push Rollers
along with newly developed
Media Set Assist Function
help to hold your media stable and prevent feeding problems.
Email Notification:
Job Completion and Error Notifications can be sent to users by email.
New Fan Media Assist:
The CE8000 internal fan automatically turns on as sensors recognize media to support feeding.
Tool Compartment:
Now has a magnetic base making it easy to move location, giving you the option to remove if needed.
Separate Tool Positions
for contour and die cutting ensures the longevity of your blades and cutting strip when creating decals and graphics that are effortlessly popped out of sheet and roll media.
Data Link Barcode System
allows cutting different jobs with different data sequentially. By reading the Graphtec barcode, the CE8000 automatically detects its linked data from a PC or USB Drive.
The CE8000 Series barcode data management system allows the
Continuous Cutting
of multiple jobs with different data sequentially by detecting the Start Mark of each new job.
Advanced Registration Mark Sensing system
delivers precise Print & Cut results using sensors to detect registration marks and perform axis alignment. Efficiency boosting functions improve
productivity for Print & Cut applications such as labels and decals.
Expanded Contour Cutting Area
expands the Print & Cut area to include objects outside of the registration marks. Production efficiency is enhanced and media waste is reduced.
CAPABILITIES
450 gf Cutting Force
39"/s Cutting Speed

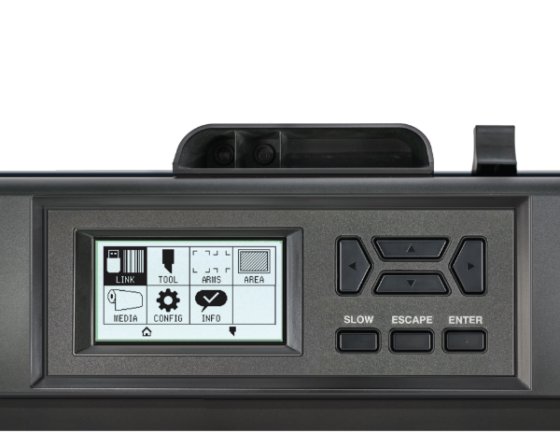

NEW Control Panel
Touch Screen AND Mechanical Keys
New Menu Structure
Integrated Firmware Updates
MORE INTUITIVE MENU STRUCTURE
Revisions to the menu are more intuitive and efficient utilizing the New Touch Screen Feature with icons that allow for easier operation
EASY FIRMWARE UPDATING
Check and download firmware via GS2 or CM5 and install directly using a USB Flash Drive or USB cable (not supplied).
HOLD DOWN FORCE CONTROL
CE8000-130 center push roller can engage / disengage
ACCESSORIES
UPDATED BLADE HOLDER DESIGN
Optional Accessories Available for Purchase:
Media Basket
Blade Loupe
Roll Media Tray
Carrier Sheet Table
Fiber-tip Pen / Holder
USB Cable
Included Design Software and Plugin:
Dedicated design software and plug-ins provide all of the tools necessary to create elegant and professional products.
Cutting Master 5 Plug-in: Adobe Illustrator (PC / MAC) CorelDRAW (PC)
Graphtec Studio 2: Design Software - PC / MAC
Windows Driver
Technical Specifications
*1: Varies depending on the type of Graphtec-authorized film and the cutting conditions.
*2: When using basket.
*3: HP-GL is a registered trademark of the US Hewlett Packard Company.
*4: Roll-medium tray or stand is included.
*5: Option provided at the factory.
$1,995 USD
