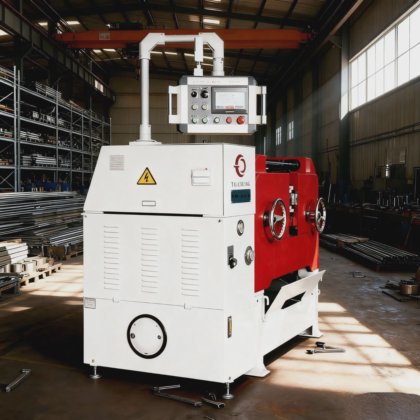

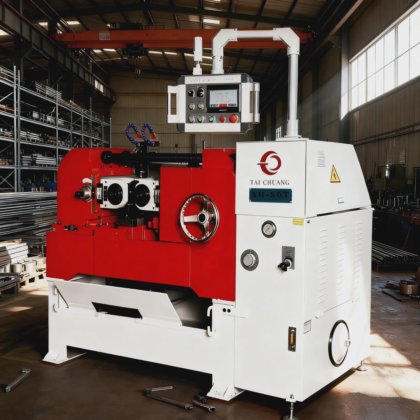

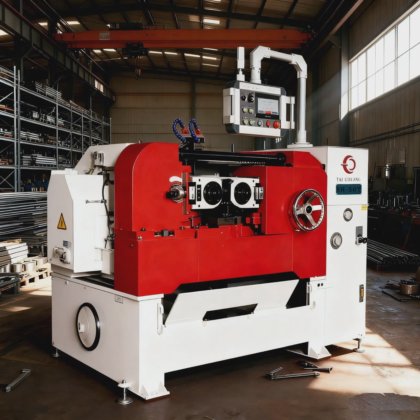

Automatic Rebar Threading Machine Bar Thread Rolling Machine for Builders in Guangdong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- on Line and on Site Service
- Forging forming method
- Mold Forging
- Power source
- Hydraulic Pressure
- Feature
- Automation
- Certification
- ISO9001
- Customized
- Customized
- Advantage
- Use Widely
- Max diameter(range of thread)
- φ70 mm
- Min.diameter(range of thread)
- φ6mm
- Pitch(range of thread)
- 0.6-6.3mm
- Range of length(in feed)
- 5-200mm
- Speed range
- 0-65 r.p.m
- Max.diameter(thread rolling dies)
- φ198mm
- Bore diameter(thread rolling dies)
- φ85mm
- Key way
- 18mm
- Max.diameter(dies spindle)
- 220mm
- Min.diameter(dies spindle)
- 150mm
- Max rolling pressure
- 50tons
- Main power
- 20HP(15kw)
- Hydraulic power
- 7.5HP(5.6kw)
- Transport package
- Polywood
- Specification
- 1740*1840*2300mm
- Category
- Threading & Tapping in China
- Subcategory
- Metal forging machinery
- Subcategory 2
- Metallic processing machinery
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 107958544
Description
Product Description
SH-50T
Strong Structure: The machine of this series adopts a two-point assembly structure with left and right frames (in L-shape), featuring high resistance and good rigidity. In particular, the sliding plate undergoes special scraping treatment, which ensures it remains more stable and less prone to wear even under long-term heavy-pressure processing.
Stable Precision: The machine is equipped with a frequency conversion mechanism for the hydraulic system, combining PLC program-controlled pressure with an automatic impact pressurization system. During thread rolling, the oil temperature remains stable, which does not affect the output force and avoids oil temperature differences—ensuring more stable average quality of processed workpieces.
Strong and Tough Hydraulic Pressure:
There are two types of ordinary hydraulic pumps:
(1) Piston type, with a maximum output pressure of 210 KGM
(2) Vane type, with a maximum output pressure of 120 KGM
