Efficient Production CNC Gear Shaping Machines with Automated Operation in Henan, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Video Technical Support
- Shipping cost
- Contact the supplier about freight and estimated delivery time.
- Secure payments
- Every payment you make on is protected by the platform.
- Refund policy
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
- Cnc or not
- CNC
- Voltage
- Customizable Voltage
- Certification
- CE, ISO9001
- Product name
- Gear Shaping Machine
- Maximum workpiece diameter
- 200mm
- Maximum module
- 4
- Transport package
- by Sea
- Specification
- /
- Category
- Gear Shaping in China
- Subcategory
- Machine tools
- Subcategory 2
- Gear cutting machine
- Subcategory 3
- Gear shaping machine
- Subcategory 4
- Manufacturing & processing machinery
- Listing ID
- 107448533
Description

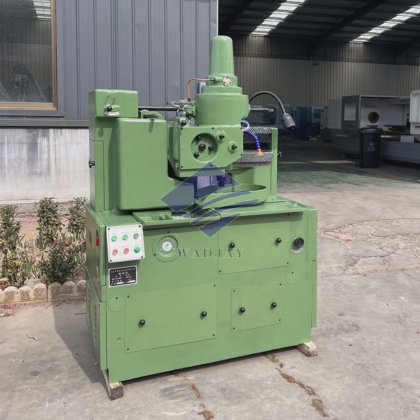

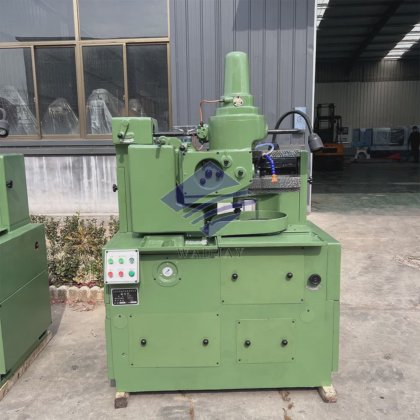

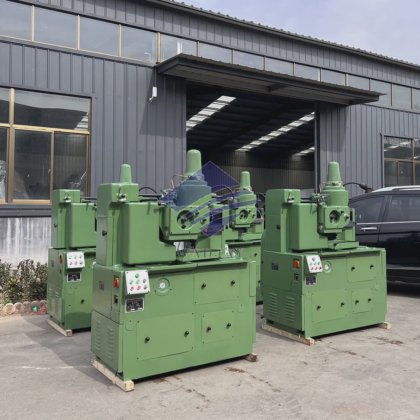

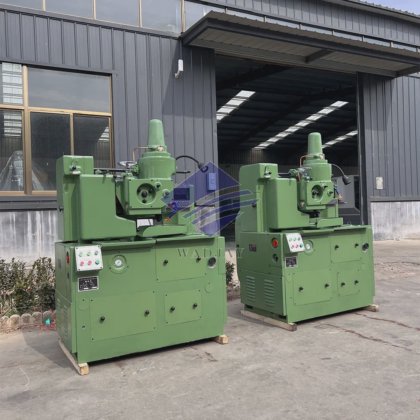

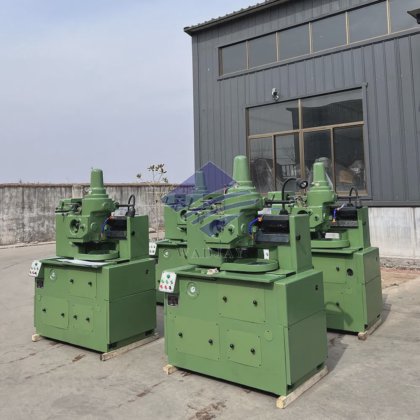

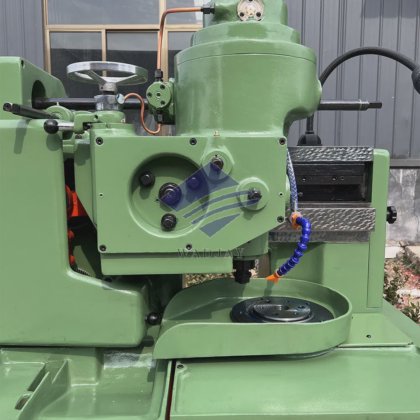

Y5120 Gear Shaping Machines are employed in the production of internal and external gears
Maximum pitch to be shaped module4, Maximum pitch circle diameter 200mm, Maximum face width 50mm, Range of strokes: 200-600/min
Specification
Product name Gear Shaping Machine
Model Y5120
Maximum workpiece diameter × maximum module (mm) 200X4
Processing range Internal gear diameter (mm) 120
Maximum processing width (mm) 50
Reciprocating stroke of the gear shaping knife Series 4
Range (times/minute) 200-600
Roughness Ra (micrometers) 3.2
Motor Main motor 1.5
Total capacity 2.14
Weight (ton) 1.7
Overall dimensions (L × W × H) (mm) 1303 x 966 x 1083
Company Profile
FAQ
Q1: How long is the warranty?
A1: We guarantee a 18-month after-sale service. Any problem when using, call or mail us, we will advise on technically sound methods. If needed, we will provide free accessories.
Q2: Can I have my own customized product?
