CAT measuring device Particle Monitor Counter Particle counter Partoscope LDT 328 in Borken, North Rhine-Westphalia, Germany
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Stock number
- 35492
- Age rating
- No age restrictions
- Country of manufacture
- Germany
- Content
- 1 piece
- Item condition
- Second hand
- Model 31
- 1,000,000 particles/1CFM,
- 16 particle size distribution
- depending on sensor technology, on customer request
- Max. displayed particle number
- 9,999,999
- Model 51
- 1,000,000 particles/1CFM,
- Category
- Particle Counters in Germany
- Subcategory
- Industrial supplies
- Subcategory 2
- Measurement & testing technology
- Subcategory 3
- Electronics & electrical engineering
- Listing ID
- 107327606
Description

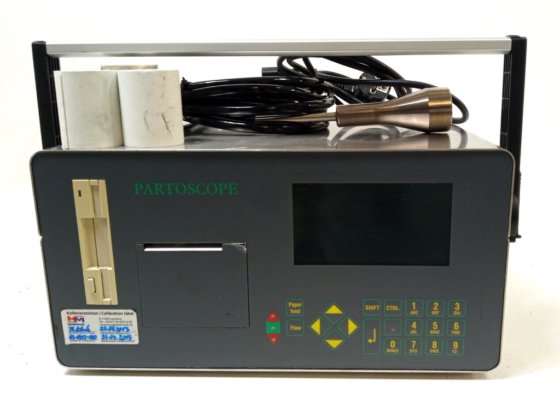

CAT Measuring Device Particle Monitor Counter Partoscope LDT 328
Technical Specifications:
Qualifications/Validations according to GMP, FDA, ISO/Calibration Service/Consulting/Research/Development
1.5 Technical Specifications
Measurement Method:
Scattered Light 90°
Light Source:
Model LS 31+51: Laser Diode, lambda=830 nm; P=40 mW
Model LS 11+21: Helium-Neon Laser, lambda=632 nm; P=5 mW
Measurement Range (Particle Size):
Model 51: 0.3 to 10 μm
Model 21: 0.2 to 5 μm
Model 11: 0.1 to 2 μm
Max. particle concentration:
Model 21: 150,000 particles/1 CFM,
Model 11: 150,000 particles/1 CFM.
Flow rate options:
28.3 l/min. (1 CFM) or 2.83 l/min. (0.1 CFM).
Flush time (adjustable):
0 to 23 hours 59 minutes and 59 seconds. With floppy disk, at least 10 seconds.
Measurement time (adjustable):
1 second to 23 hours 59 minutes and 59 seconds.
230/115 VAC, 50/60 Hz, max. 400 W.
Power supply:
Operating conditions:
5-35°C, 10-80% relative humidity, non-condensing, 0-6000 m above sea level.
Interface:
Printer:
LCD display:
Thermal printer (paper width 58 mm).
Active RS232 interface.
Services offered by seller
This seller offers spare parts
This Seller offers repair & maintenance services
This seller offers transport & logistics
This Seller offers rental services
This Seller offers consultancy services
This seller can help you plan & execute entire projects
Seller Reviews
$716 USD
