PROTEC BICS2000-20C in Lorquí, Region of Murcia, Spain
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Stock number
- 0000000197777
- Height
- 1.65 m
- Included
- 0.95 m
- Useful width
- 0.56 m
- Length
- 2.75 m
- Weight
- 0 Kg
- Made of
- STAINLESS STEEL
- Variable speed drive
- INCLUDED
- Volt
- 24 V
- Control pannel
- INCLUDED
- Frequency
- 50 HZ
- Amperes
- 0.35 AMPS
- Pressure
- 6 Bar
- Air consumption
- 75 Nl/min.
- Volume of flow
- 17 ÷ 23 T/h
- Speed
- 50 ÷ 60 m/min.
- Consumption
- 120 L/min.
- Subcategory
- Detectors / sorters
- Listing ID
- 107074503
Description

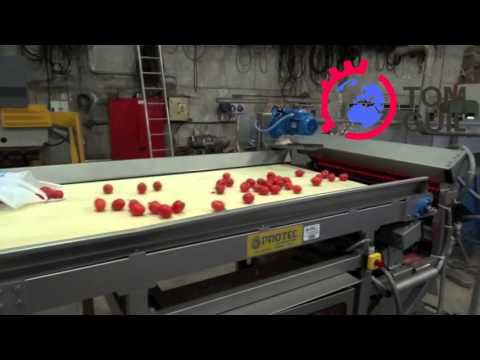

This series of machines selects products by means of a high precision electronic system, the tomatoes in the desired color shade and allows, according to the applications, to discard the product of the undesired color or possible foreign bodies from the product flow. Sorting characteristics: Sorting efficiency: 96%. Vision system: Optical sensors Optical resolution: 25 mm Illumination: LED visible / infrared Degree of protection: IP65 Ejection system: mechanical / pneumatic with lubricated air Working pressure: 5 ÷ 6 bar Conveyor system: Belt conveyor Cleaning system: Water, with pneumatic movement of the brush (Brush) automatic timed operation. Electromechanical characteristics: Operating voltage: 400 - 480 (3F+T), 50 - 60 HZ. Power consumption: 1 kW Command voltage: 24 V DC
