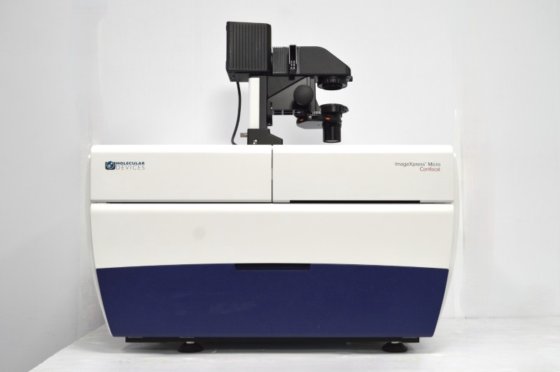

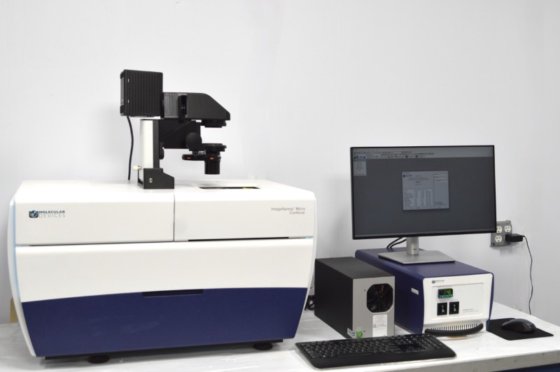

Molecular Devices ImageXpress Micro Confocal High-Content Imaging System Unit 6 in Walpole, MA, USA

- Good cosmetic condition
- Technical sales consultation available
- WARRANTY

Here is what you will receive:

- Molecular Devices ImageXpress Micro Confocal High-Content Imaging System

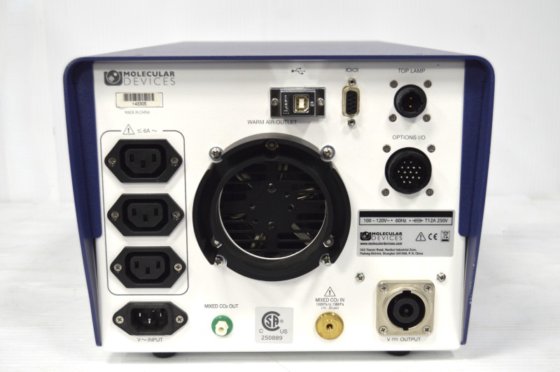

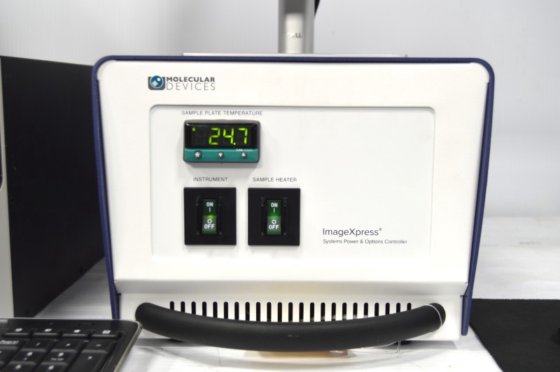

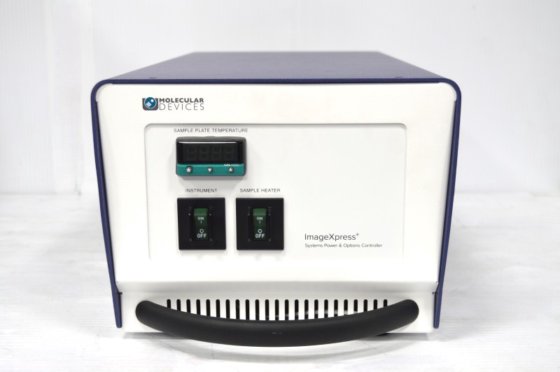

- ImageXpress power and options controller
- Installed emission Filters: DAPI, FITC, CFP, Texas Red, CY5, CY7, YFP
- Nikon Objectives:

- 4x/.20 S Fluor

- 10x/0.45 Plan Apochromat Lambda

- 20x/0.45 S Plan Fluor ELWD

- 40x/0.95 Plan Apochromat Lambda

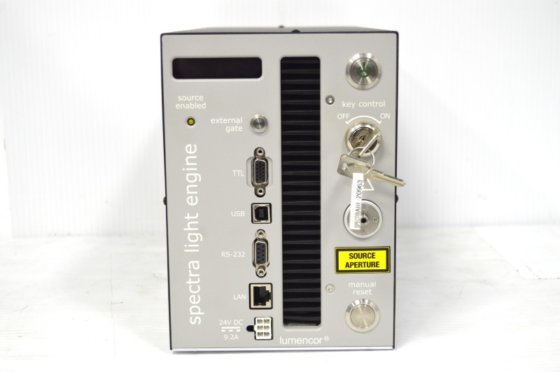

- Lumencor Spectra III light engine
- Nikon Illumination arm with Nikon 100W Halogen lamp
- Single Slide Holder
- Computer running MetaXpress 6.7.2 and MetaXpress PowerCore with license dongles
- Monitor, mouse, keyboard
- Communication and power cables

ImageXpress Micro Confocal HCI System Configuration:

- Camera: Andor Zyla sCMOS
- Spinning disk geometry: 60 um pinhole (single disk)
- High-speed laser autofocus with integrated image autofocus option
- Light Source: Lumencor Spectra III light engine & 100W Halogen lamp
- Linear encoded voice coil-driven X, Y, and Z stages with better than 25 nm resolution
- 4-position automated objective changer
- Objectives:

- 4x/.20 S Plan Fluor

- 10x/0.45 Plan Apochromat Lambda

- 20x/0.45 S Plan Fluor ELWD

- 40x/0.95 Plan Apochromat Lambda

- 5-position software-selectable dichroic filter wheel
- 8-position software-selectable emission filter wheel
- Filters Installed: DAPI, FITC, CFP, Texas Red, CY5, CY7, YFP
- Sample compatibility: slides and one to 1536-well microplates, round or flat bottom, low to high profile
- Throughput: >160K wells/day confocal, >200K wells/day widefield

Installed OPTIONAL system features:

Environmental Control:

- Multi-day, live cell time-lapse imaging
- Provides appropriate atmospheric conditions (e.g., 5% or 10% CO2; requires premixed gas)
- Mimics physiological environment (30–40 DegC ± 0.5 DegC)
- Controls humidity and minimizes evaporation (0.5 μL/well/hour for 96- or 384-well formats)

Transmitted Light Option:

- High-contrast imaging, where unstained cells are easily viewed or separated from the background
- Ideal for non-fluorescent histochemically stained samples
- Fluorophore-independent morphology visualization with fluorescent imaging overlay

Software Modules:

MetaXpress 6.7 Acquisition and Offline Analysis Software included foundational tools:

- Time-series acquisition and analysis
- Integrated with Acquisition and Analysis Wizards
- Z-series acquisition
- Acquisition integrated with the Acquisition Wizard
- Z-series analysis
- Analysis integrated into the workflow
- Compatible with MetaXpress PowerCore software
- Customized analysis
- Integrated Custom Module Editor
- Transmitted light segmentation
- Simple step cards are available with the Custom Module Editor
- Asynchronous kinetics
- Built into the Acquisition Wizard
- Basic curve fitting
- Included with the MetaXpress software
- Peak analysis
- Included with the MetaXpress software
- Basic 3D acquisition setup tools
- Includes Z-stack capture, 2D projection options
- Interactive GUI for Z settings

Included OPTIONAL application modules:

Customization/Options:

- Other objectives might be available, please inquire with our sales team.

Testing performed by our in-house service team:

The ImageXpress Micro Confocal HCI System passed all tests and was found to be fully functional:

- We initialized the ImageXpress Micro Confocal System.
- We established communication with the software.
- We checked the clarity of the objectives.
- We tested the laser autofocus functionality.
- We ensured clarity in all installed filters.
- We verified the functionality of the Lumencor Spectra III
- We performed multi-well acquisitions.
- We performed multi-channel slide acquisitions with image stitching.
- We tested the emission and dichroic filter wheel functionality.
- We conducted spatial calibration.
- We confirmed camera clarity and functionality.
- We verified full X and Y stage movement.
- We confirmed the full Z movement.

Instrument Overview:

- Molecular Devices ImageXpress Micro Confocal HCI System includes Andor Zyla sCMOS camera and 60 µm spinning disk.
- Lumencor Spectra III light engine and 100W halogen lamp provide flexible illumination options.
- Linear encoded X, Y, Z stages deliver sub-25 nm resolution with a high-speed laser autofocus system.
- Nikon objectives from 4x to 40x cover a range of magnifications for diverse imaging needs.
- Emission filter wheel supports up to 8 positions with installed filters like DAPI, FITC, CFP, CY5, CY7, and YFP.
- The ImageXpress system handles slides and microplates up to 1536 wells with throughput over 160K wells/day.

Instrument Application:

- Drug discovery
- Cell viability assays
- High-throughput screening
- Phenotypic screening
- 3D cell culture imaging

The Key Features:

- Advanced imaging for cellular analysis
- High-content imaging with confocal mode
- Multiple objective and filter options
- Precision focus and stage control
- Supports multi-well plates and slides

Additional technical info:

- Datasheet: ImageXpress Micro Confocal Datasheet
- Brochure: ImageXpress Micro Confocal Brochure
- Software Brochure: ImageXpress Micro Confocal Software Brochure
- Family Brochure: ImageXpress Micro Confocal Family Brochure
- Quick Start Guide: ImageXpress Micro Confocal Quick Start Guide
- Manual: ImageXpress Micro Confocal Manual
- System About Report: MetaXpress Software modules
