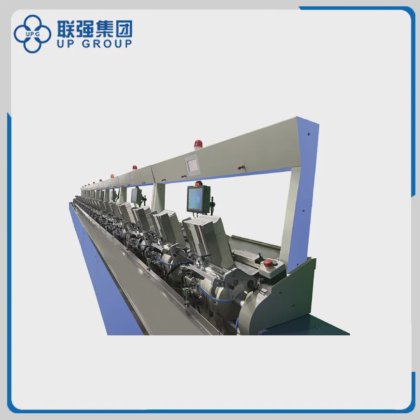

High Speed Automatic Collating Machine with Intelligent Control System in Shanghai, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Video Technical Support, Online Support
- Max. operating speed
- 6000 RPH
- Number of collated pages
- 12-48 signatures
- Standard voltage
- 400 V, 50 Hz, 3 phases
- Net weight
- 9000 kg
- Transport package
- Wooden Case
- Specification
- 20900× 1200× 1850 mm (24 stations)
- Category
- Packaging Machinery in China
- Subcategory
- Packaging & printing
- Subcategory 2
- Post-press equipment
- Listing ID
- 106838612
Description
Product Description
Functions & features
· Intelligent Control System: Equipped with a 12-inch color touchscreen on a standard swivel arm, the machine provides intuitive programming through an easy-to-navigate menu. This system controls the machine's operational functions and displays alarm messages, making it easy for operators to quickly troubleshoot issues. The interface is user-friendly and easy to learn.
· Advanced Sensing Technology: Each collating station features sensors that monitor for issues like paper misalignment, empty feeds, jams, and conveyance problems indicator lights are displayed, making it simple for operators to quickly identify and resolve issues.
· Integrated Collating Function: The machine automatically collates different page numbers and stacks them for output, streamlining your workflow.
· Continuous Operation and Purge Functions: The machine offers continuous start-up and clear-out capabilities, enhancing operational efficiency.
