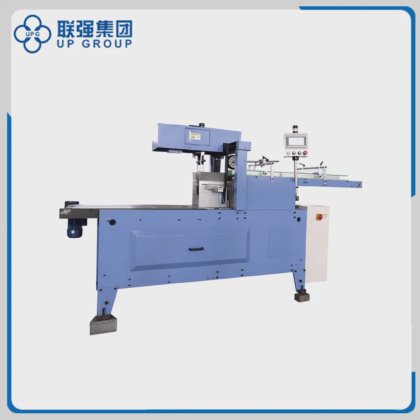

High Speed Automatic Book Stacker Machine with PLC Control in Shanghai, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Video Technical Support, Online Support
- Stacking speed
- 15-50 books/min
- Workbench height
- 900 mm
- Stacking height
- 20-100 mm
- Net weight
- 1000 kg
- Transport package
- Wooden Case
- Specification
- 3100× 700× 1800 mm
- Category
- Packaging Machinery in China
- Subcategory
- Packaging & printing
- Subcategory 2
- Post-press equipment
- Listing ID
- 106692731
Description
Product Description
Functions & features
· This machine is an automated equipment suitable for stacking books, notebooks and other products. It can automatically stack the required number of books and push them out to be transported on a conveyor belt for cutting with the three-side cutting book machine.
· This machine has a two-layer storage.
· The conveyor be t and the mechanical arm will ensure neat and consistent stacking of books.
· The UI-interface and PLC system have been optimized to be user friendly so the new learners can pick up quickly. The surveillance monitors can supervise the production line and report any faults, stopping the machine automatically and alerting the operator.
· It has memory function which can store different specifications and switch between different sizes smoothly by a single click.
Specification
Stacking Speed 15-50 books/min
Raw Edge Size Max: 430×285 mmMin: 140×105 mm
Stacking Height Max: 100 mmMin: 20 mm
Workbench Height 900 mm
