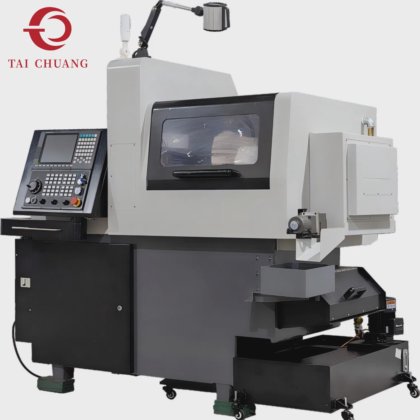

Automatic Swiss Type Lathe with Live Tooling for Multi-Operation Tasks in Guangdong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- on Line and on Site Service
- Application
- Metal
- Process usage
- Metal-Cutting CNC Machine Tools
- Movement method
- Contour Control
- Control method
- Closed-Loop Control
- Numerical control
- CNC/MNC
- Processing precision
- 0.01~0.02(mm)
- Performance classification
- Mid-Range CNC Machine Tools
- Certification
- ISO 9001
- Precision
- High Precision
- Characters
- Rigidity
- Processing time
- Techincian Will Do The Assessment
- Size
- Depending on The Model
- Transport package
- Polywood
- Specification
- 2310× 1880× 1800
- Category
- CNC Lathes in China
- Subcategory
- Machine tools
- Subcategory 2
- Cnc machine tools
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 106598081
Description
Product Description
20Series
Product Description
This machine tool features the following key specifications:
1. Stroke and Boring Diameter
Spindle Single - feed Stroke: With a length - diameter ratio of 3:1 and 200mm for different guide bush configurations (without guide bush, fixed guide bush, guide bush with standard 80mm and optional 140mm).
Max Spindle/Sub - Spindle Speed: 8000/8000 rpm.
Max Swing Diameter of Main/Sub - Spindle: Φ20/Φ20 mm.
Minimum Division Number: Continuous indexing for all configurations.
Spindle/Sub - Spindle Bore: Φ22/Φ22 mm.

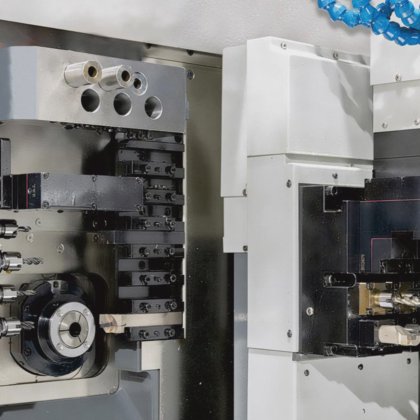

2. Tool Specifications and Quantity
Number of Turning Tools: 5 turning tools for some configurations and 12 turning tools for others, with a turning tool shank size of 12×12 mm. Different numbers of end - face fixed and power tools are available, such as ER11 and ER11×3 tool holders.
3. Other Parameters
Motor Power: Spindle/sub - spindle motor is 2.2/2.2 kw.
