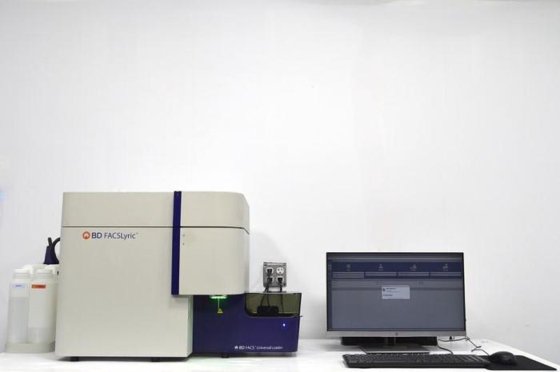

BD FACSLyric IVD Flow Cytometer (3)Lasers(10)Colors/(12)Detectors with 30-tube Universal Loader in Walpole, MA, USA

- Made in 2022
- WARRANTY
- Optional on-site setup and training are available for customers within 2 hours of Boston, MA
- Optional remote installation support and training are available for non-local customers
---------------------------------------------------------------

Here is what you will receive:

- BD FACSLyric IVD Flow Cytometry System Ref: 662878
- Computer running FACSSuite software with License Dongle, Monitor, Keyboard, and Mouse
- 30 Tube Rack
- 5L Sheath and Waste Bottles
- 10L Sheath Bottle

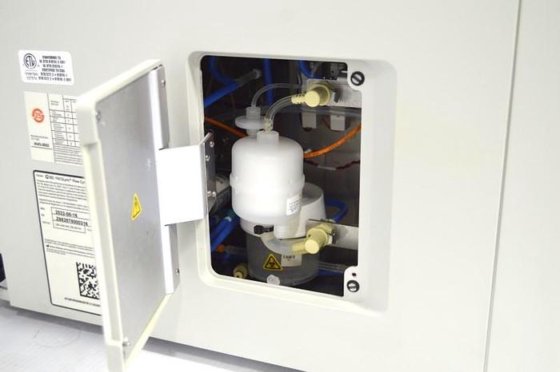

- Sheath filter Bypass (for cleaning fluidics)
- Communication and power cables

BD FACSLyric Flow Cytometer Configuration:

- (3) Lasers: 488nm Blue / 640nm Red / Violet 405nm
- (10) Colors simultaneously
- (12) Detector channels
- Laser Color Allocation (Laser/Channel Count): Blue/4, Red/3, Violet/3
- FSC Detection: Photodiode detector
- SSC Detector: Photomultiplier tube (PMT) with a 488/15 filter

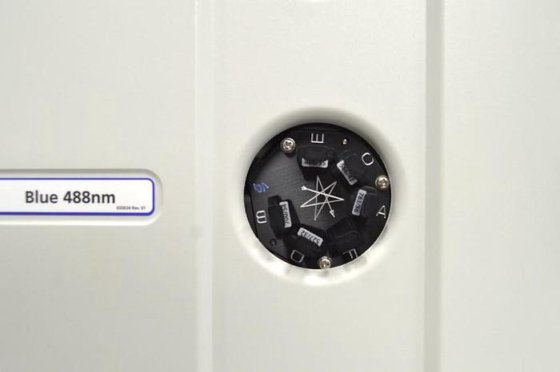

- 488nm Blue Laser: Channel A(783/56, 752LP) Channel B(700/54, 665LP) Channel C(586/42, 560LP) Channel D(527/32, 507LP);

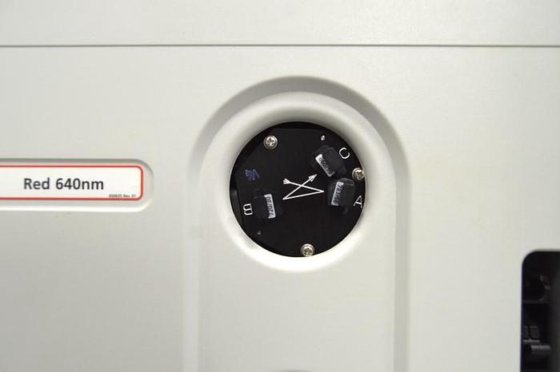

- 640nm Red Laser: Channel A(783/56, 752LP), Channel B(720/30, 705LP), (Channel C (660/10);

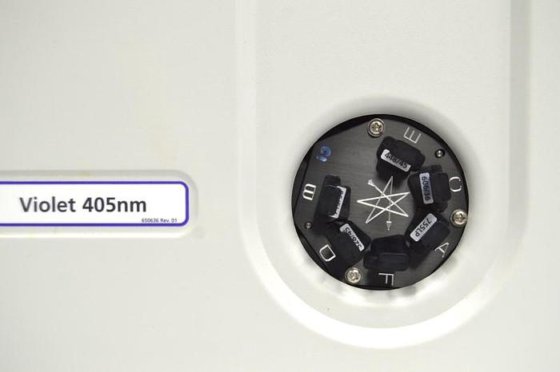

- 405nm Violet Laser: Channel C(606/36), Channel D(528/45, 500LP), Channel E(448/45).
- Beam spot size (all lasers): 9 um x 63 um
- Fluorescence Threshold Sensitivities: FITC <85 MESF; PE <20 MESF
- Data Acquisition Rate: 35,000 events/s with beads
- Sample Flow Rates: LO: 12 uL/min; MED: 60 uL/min; HI: 120 uL/min; High sensitivity: 50 uL/min
- Sample Handling: Manual Tube Loading, Universal loader (30-tube rack (12 x 75-mm tubes), 96-384-well plates)
- Sample dead volume: 30 uL (12 x 75-mm tubes)
- Size (D x W x H) Cytometer: 63.2 x 57.9 x 57.9 cm; 24.9 x 22.8 x 22.8 in.
- Weight Cytometer: 56.0 kg (123.5 lb) Loader: 13.2 kg (29 lb)

Customization/Options: N/A

Testing performed by our in-house service team:

The BD FACSLyric Flow Cytometer passed all tests and was found to be fully functional:

- We set up and initialized the system.
- We established a connection to the software.
- We performed a deep cleaning of the fluidic system.
- We test the lasers for power and stability.
- We verify the base alignment and test auto alignment features.
- We carried out the monthly and daily cleaning cycles.
- We verified the operation of the universal loader.
- We conducted baseline and performance QC (normal).

Instrument Overview:

- The BD FACSLyric IVD Flow Cytometer offers three-laser excitation and detection across ten fluorescence channels.
- The FACSLyric features twelve detectors to support complex multi-parametric flow analysis.
- Includes a 30-tube Universal Loader for automated sample handling and increased throughput.
- The BD FACSLyric is built with a compact footprint and integrated fluidics system for lab efficiency.
- Supports standard 5- to 15-mL tubes with minimal user intervention during loading.
- The FACSLyric system operates on 100–240 VAC power and includes safety features for clinical environments.

Instrument Application:

- Immunophenotyping for identifying and analyzing cell populations.
- Cell cycle analysis to study cell proliferation and division.
- Biomarker detection for disease research and diagnostics.
- High-throughput screening for drug discovery and development.

The key features:

- Three lasers for multiparameter detection.
- 12-color capability for complex analysis.
- 14 detectors ensure high sensitivity.
- 30-tube universal loader for automation.
- High-throughput sample processing.
- Reliable and reproducible performance.

Additional technical info:

- [Cytometer Characterization QC Report](https://drive.google.com/file/d/16HYB-ItwkB2hvwKdvNLCDPgHbU5kzHL7/view?usp=sharing)
- Datasheet: BD FACSLyric Flow Cytometer Datasheet
- Brochure: BD FACSLyric Flow Cytometer Brochure
- Manual: BD FACSLyric Flow Cytometer Manual

WHY DO CUSTOMERS MAKING CRITICAL LAB PURCHASES CHOOSE TO ORDER FLOW CYTOMETERS FROM US?

They want to ensure the cytometer undergoes full fluidics system decontamination, flushing, and inspection to protect the valves and flow sensors from damage.

They want to ensure the cytometer has no residual sheath salt buildup in the flow cell, which could skew scatter data and, and if improperly cleaned, can damage the flow cell.

They want to confirm that all detectors, including forward scatter (FSC) and side scatter (SSC) detectors, can be aligned and calibrated for particle sizing and granularity resolution.

They want assurance that baseline performance has been verified using standardized particles, with data or log files available for review.

They want to confirm that electronic noise and EMI levels at the detector/amplifier stage remain within tolerance and will not distort signal fidelity.

They want to ensure that no fiber optic cables are missing, misrouted, or defective, which can lead to diminished fluorophore excitation or signal dropout.

They want to confirm that no power degradation or misalignment in laser paths is detected through precise mW-level measurement at the final optics output.

They want to ensure that optical filters and dichroic mirrors have been inspected for delamination, spectral shift, or contamination that could compromise signal specificity.

They want to ensure the sample flow rate is linear and stable across a full range of flow settings, verified with volumetric calibration and pressure profiling.

They want to ensure the system passes automated QC and performance tracking with reproducible CVs for bead standards across multiple channels.

They want to ensure the fluidics pump assembly does not exhibit pulsation, drift, or backpressure due to check valve wear or micro-leaks.

They want peace of mind, knowing their instrument is backed by a warranty from a company that can stand behind it.

Our Advantage

- We have experience servicing and repairing these instruments.
- This instrument goes through all the described service steps before shipping. see questions section below
- We offer detailed photos and videos of the instruments you buy.
- We are an approved pre-owned equipment vendor to many large US, Canadian, and EU Universities.
- We are an approved pre-owned equipment vendor to many Fortune 500 US and International Biopharma companies.
- Technical sales consultation available
- Remote installation and instrument operation training may be available.
- On-site installation may be available in the Boston Area (New England area)
- US or International shipping is no problem (see the shipping tab on how we pack and feel at ease)

Our Guarantee

- Warranty
- An extended warranty may be available
- You get after-sales technical support
- Customer references are available
- The instrument will be fully functional!
- Smooth process from the initial quote to order fulfillment

This will ship via freight. Please contact us with your zip code to obtain a shipping quote.

*LA* Large Crate

325#

PLEASE NOTE THAT THE QUESTIONS BELOW ARE ANSWERED IN MORE THOROUGH DETAIL ON OUR WEBSITE

Q: Can I view this instrument in person at your facility or do a live Zoom demo before it is shipped to me?

A: We can accommodate both in-person or Zoom demos.

Q: What about the warranty?

A: The instrument comes fully warranted for both parts and labor.

Q: Do you offer installation, service, etc?

A: We offer remote installation and training packages to familiarize you with this instrument.

Q: What should I watch out for when buying a used/pre-owned instrument from another lab?

A: Ensure that the instrument is in good working condition with no damage or wear that could affect its performance. Ask for details about testing steps performed, video demo, and test screenshots.

Q: Do you have more than one of these instruments on hand?

A: We generally carry multiple instruments on hand, along with a variety of spare parts.

Q: This procurement is for a University or College. Are purchase orders with NET terms accepted?

A: We accept purchase orders from all major US and Canadian universities.

Q: How fast will you ship?

A: We can ship within a few days to two weeks. Shipping time depends on the current demand for our instruments. Members of our sales team will be able to offer current delivery estimates.

Q: Will my instrument be insured during shipping?

A: Absolutely! We insure all our shipments as long as we are the shipper. If a customer ships on their account, they handle insurance.

Q: How do you pack? Have you previously packed and shipped the fragile laboratory instruments?

A: We have extensive experience shipping high-end and complex laboratory instruments in the US and Internationally.

Q: Do you ship Internationally?

A: Yes! We have shipped to multiple continents and over 30 countries.

Q: How much will I save buying it pre-owned, and is it worth it?

A: When compared to buying a new instrument, you will save 60% or more and have plenty of funds left over for an additional instrument or two.
