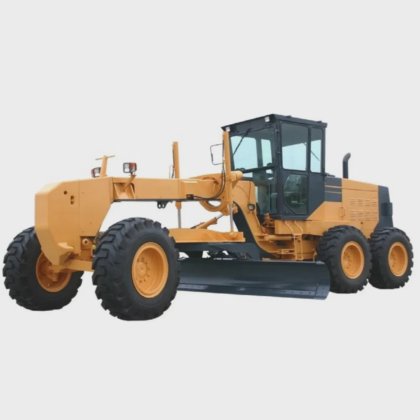

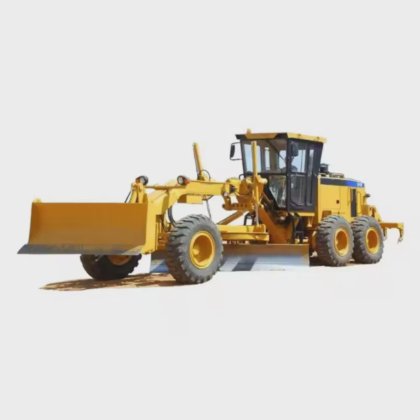

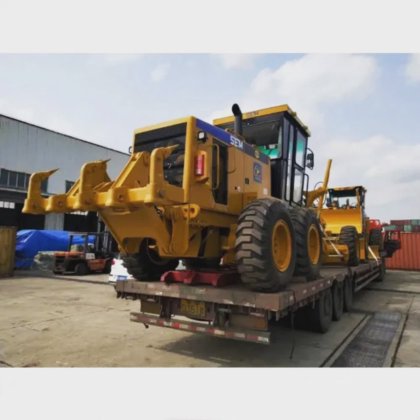

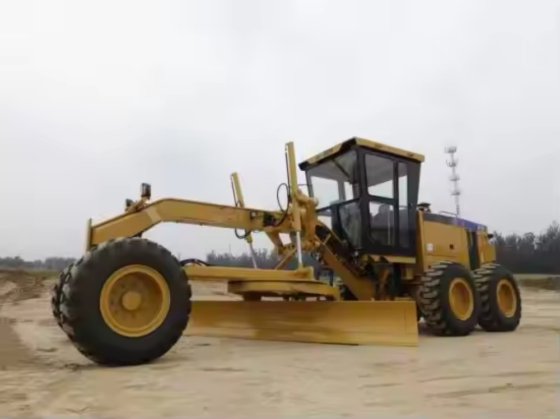

New Motor Grader Sem921 Motor Grader Remote Control with High Efficiency in Shandong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Online
- Certification
- ISO
- Application
- Railway, Mine, Farmland, Highway
- Transmission
- Hydraulic
- Walking mode
- Wheeled
- Operating weight
- 15930 Kg
- Top speed, reverse
- 25 Kph
- Gradeability
- 30°
- Wheel base
- 6140 mm
- Min. turning radius
- 7800 mm
- Transport package
- Nake
- Specification
- 8854x2630x3360 mm
- Hs code
- 8429209000
- Production capacity
- 10000
- Category
- Motor Graders in China
- Subcategory
- Grader
- Subcategory 2
- Construction grader
- Subcategory 3
- Manufacturing & processing machinery
- Subcategory 4
- Engineering & construction machinery
- Listing ID
- 106090155
Description
Product Description
Tandem Axle
* Leveraging designing and experience on MG tandem axle
* Improved bearing Layout and optimized load distribution with 4 planetary gears final drive
* Less down time and reduced labor and service cost for maintenance and repairing
* Longer service interval for lubrication oil change
* Leading in class manufacturing and quality control level, mandatory performance testing before delivering to MG assembly line
Control System
* 7 position link bar with electric over hydraulic control allows ease of operation from within the cab
* Optimum blade reach capability, quick DCM re-positioning for greater reach for better working on high bank side slope
* The link bar is essential for extending reach capability when cutting a bank slope or back slope of a ditch
* Replaceable bushings reduce service time and cost
Blade Float
* Standard blade float function allows blade to lower without hydraulic pressure for increased versatility
Find more
$55,000 USD
