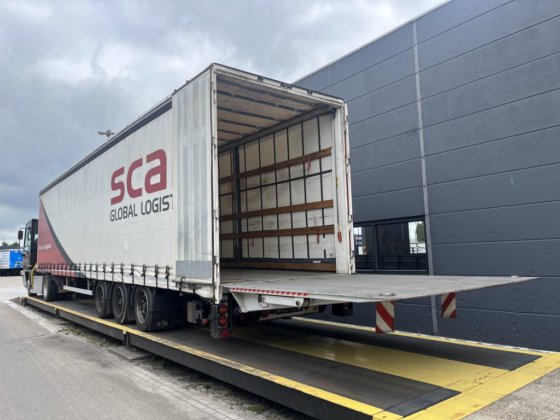

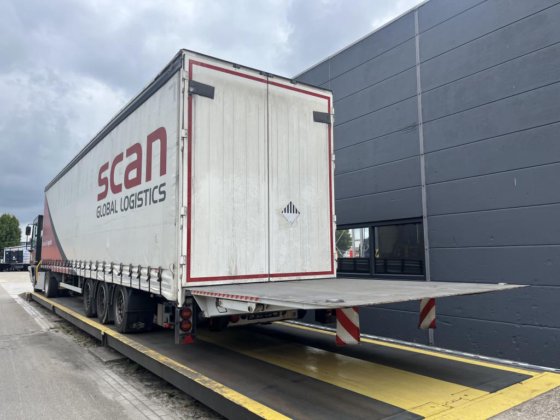

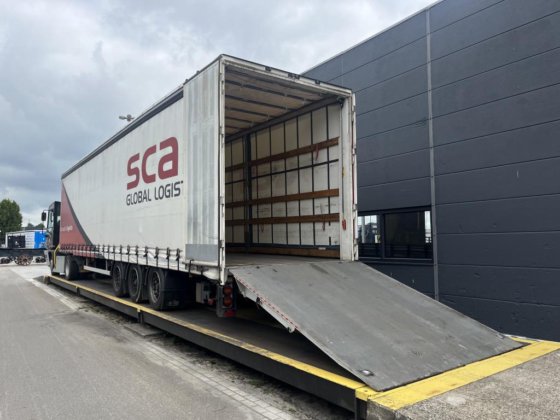

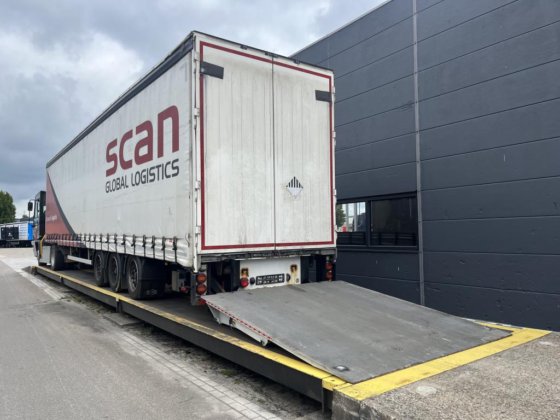

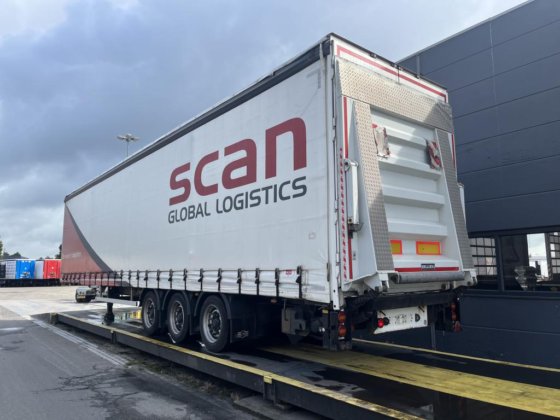

2020 Pacton Mega curtainsider trailer in Ommen, Overijssel, Netherlands
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Year
- 2020
- Stock number
- DTC3453
- Shafts
- BPW disc brakes
- Subcategory
- Trailers
- Listing ID
- 105837633
Description
Pacton Mega sliding tarp trailer | 9 ton tailgate | rear doors
Key specifications:
Internal length: approx. 13,470 mm
Internal height: approx. 2,960 mm
Overall height: approx. 4,030 mm
Width: 2,550 mm
Coupling height: approx. 950 mm
Chassis: Flat chassis with I- and U-profiles, reinforced for forklift loads
Axle Gear & Brake System:
3x BPW Eco Air Compact disc brake axles, 9 ton technical load capacity per axle
Air suspension with lift/lower function
Wabco EBS system with ABS (2S/2M) and RSS anti-tipping system
Tail lift:
Dhollandia DH-LSU-90, 9,000 kg capacity
Rear locking, "put away" behind rear doors
Platform size: approx. 2,800 x 2,520 mm
Hydraulic supports, operated from outside and inside via hand lever
400V power connection (Cekon 32A) with double fuse
Superstructure:
Sliding roof with Kevlar aramid roof tarpaulin (Carapax), both forward and reverse sliding
Pacton slide rings, 3 per side, movable with shelf supports
