Switch Key Load Displacement Curve Tester Load Stroke Curve Analysis Testing Machine Button Key Force Displacement Tester in Hunan, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Online
- Mass scope of workpiece
- <900kg
- Accuracy grade
- 0.01mm
- Load way
- Electronic Load
- Loading method
- Dynamic Load
- Display
- Digital
- Control
- Computer Control
- Weight
- 0-100Kg
- Power source
- AC220V
- Transport package
- Plywood Case
- Specification
- 300*270*500(W*D*H)mm
- Hs code
- 9024800000
- Production capacity
- 200
- Subcategory
- Test machine
- Subcategory 2
- Test instrument
- Subcategory 3
- Instruments & meters
- Listing ID
- 105399087
Description
Product Description

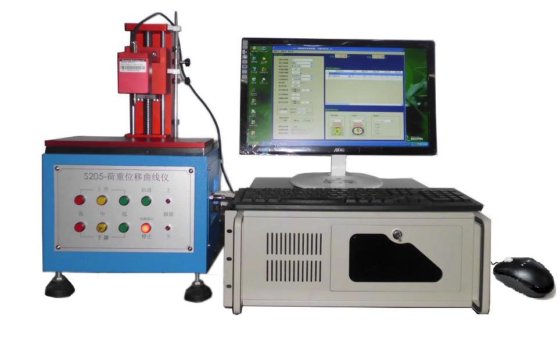

Switch Key Load Displacement Curve Tester Load Stroke Curve Analysis Testing Machine Button Key Force Displacement Tester
1.Brief introduction:
GA-3414
switch - button load displacement curve test machine is suitable for all kinds of buttons and switches (load - displacement) curve, test, using WINDOWS Chinese Windows screen to set, simple and convenient operation, and all data can be stored (test conditions, displacement curve, life curve, inspection report ----, etc.)
This MACHINE ADOPTS servo motor drive, which can provide high precision (load-displacement) measurement, and can get completely accurate button and switch curve test.
Switch Key Load Displacement Curve Tester Load Stroke Curve Analysis Testing Machine Button Key Force Displacement Tester
2.Features:
PEAK FORCE, RETURNFORCE, DISTANCE and CLICK rate can be displayed directly on the chart without manual calculation.
