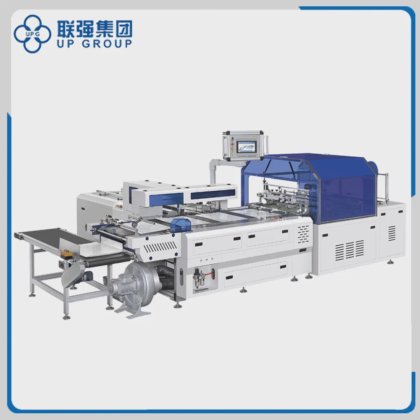

Large Format Automatic Bagging Machine for A4 Paper, Documents, and Notebooks Packaging in Shanghai, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Video Technical Support, Online Support
- Automatic grade
- Automatic
- Application
- Dairy Products, A4 Paper, Documents, and Notebooks
- Forming species
- Bag Moulding
- Forming function
- Forming, Filling, Seal
- Material type
- Solid
- Packaging
- Bag
- Packaging material
- Film
- Max. speed
- 20-40 bag/min
- Max. size of packing
- 300×420 mm
- Min. size of packing
- 150×150 mm
- Thickness of packing
- 2-30 mm
- Transport package
- Wooden Case
- Specification
- 4500× 3200× 1650 mm
- Category
- Packaging Machinery in China
- Subcategory
- Packing machinery
- Subcategory 2
- Packaging & printing
- Subcategory 3
- Multi-function packing machine
- Listing ID
- 105151467
Description
Product Description
This machine is a dedicated device used for fully automatic pack product such as card, manual, certificate, comic book, document bag, envelope, shingle, paper sheets, A4 paper notebook, and heterogeneous product, it has such functions as folding, bag making, counting, trimming, gilding, labeling, sticking adhesive label, bagging, hot sealing and cutting and so on.
The overall action adopts modernized motion module controller, executed by PLC multi-axis servo, which makes PLC specifications and size data have a memory function. It's easy to do data debugging due to the simple and reasonable structure. It can position accurate and fast, as well as a function of product automatic transportation and counting.
1. Collation: Equipped with a built-in collation function, this machine allows multiple products to be packaged into a single bag. It can be configured in accordance with the customer requirements to achieve the desired collation effect.
2.
