Kice Venturi Jet Filter, With Rotary Airlock, Cyclone & Fan in Winnipeg, Manitoba, Canada

- Inlet transition to 11" O.D.

- Clean air outlet to have a horizontal air outlet to 12" O.D.

- Stock Outlet to mate 16x12x12 airlock flange.

- Continuous welds on exterior only.

- Four each carbon steel bolt-on support pads.

- Bolt-on inspection door in the cone.

- install mounting hardware for suppression and isolation system.

- Assembly hardware will not be stainless steel or equivalent unless otherwise specified.

- Product contact zones unpainted, all other carbon steel surfaces painted Kice white.

- VJX 16x12x12 Airlock

- - 12" square inlet and outlet with a displacement of 1.1 CFR at 100% full.

- - Cast gray iron housing and endplates with plow type inlet.

- Patented replaceable outboard bearing cartridge - integrated bearing and PTFE shaft seal.

- Cast ductile iron eight-vaned, "open end" rotor.

- Driven by 1 HP, 1725 RPM, TEFC, 575/3/60 NEMA Premium efficient motor.

- NOTE: Standard TEFC motor with no environmental marking/T Code.

- Motor mounted on an SM-Cyclodrive gear reducer, model CNHX-6100-Y, 29:1 (60 RPM) ratio.

- #50 chain drive to 20 RPM.

- Fixed motor mount with adjustable idler sprocket.

- Fully enclosed sanitary guards.

- Meets NFPA 69 as passive isolation device.

- Fully machined clearances of 0.004" to 0.006".

- Trailing edges relieved to 1/8" land on tips and sides of all rotor blades.

- Product contact zones unpainted, all other surfaces painted Kice white; guards painted safety orange. Please specify

otherwise.

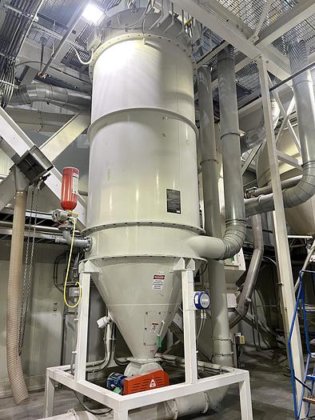

- Kice Model VR45-8 Venturi-Jet Filter

- - Filter is complete with 424 square feet of filter media, selected to serve 2800 SCFM of dry, ambient, dust-laden air based on

- air to cloth ratio of 6.60:1. The Kice filter has an interstitial velocity of 149 FPM. Each unit will require approximately 8 CFM

of 80-100 PSIG compressed air at tank inlet for bag cleaning.

- Venturi-Jet cleaning system includes sequence controller, Venturi-Jet valves with supplementary valves, air tank, gauge,

fittings, tubing, couplings, and pressure differential gauge. Controls are 100% solid state, 120VAC mounted in a NEMA 4

control box. Solenoid valves to operate the blast valves are NEMA 4.

- Top bag removable with quick access hatches on clean air chamber.

- Clean air chamber with pitched roof.

- Tube sheet.

- Filter housing designed to withstand operating conditions of 80 in. w.g. vacuum and 80 in. w.g. pressure, complete with

hinged aluminum bag housing access door. Filter will be shipped factory assembled in major sections (i.e. housing and

hopper), bags not installed.

- 45 ea. 4 5/8 inch dia. x 8' 16oz polyester filter bags .

- 45 ea. galvanized top bag removable cages.

- Cyclonic inlet to 12" O.D., flanged, and located as required.

- Air outlet transition to 12" O.D., flanged, and located as required.

- Internal bars for structural support.

- NOTE: Kice recommends a ladder safety system for any ladder over 12’ and OSHA REQUIRES a ladder safety system for

any ladder over 24’.

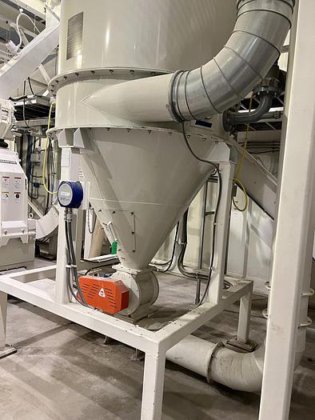

- 66.25 inch hopper with 60 degree pitch and discharge to mate a14x10x10 airlock. Hopper is to have an inspection door.

- Magnehelic gauge.

- Support structure.

- Carbon steel construction throughout except as noted above.

- Product contact zones unpainted, all other surfaces painted Kice white. Please specify otherwise.

- Continuous welds on exterior only.

- Explosion Protection not included.

- VJX 14x10x10 Airlock

- - 10" square inlet and outlet with a displacement of 0.67 CFR at 100% full.

- - Cast gray iron housing and endplates with plow type inlet.

- Patented replaceable outboard bearing cartridge - integrated bearing and PTFE shaft seal.

- Cast ductile iron eight-vaned, "open end" rotor.

- Driven by 1 HP, 1725 RPM, TEFC, 575/3/60 NEMA Premium efficient motor.

- NOTE: Standard TEFC motor with no environmental marking/T Code.

- Motor mounted on an SM-Cyclodrive gear reducer, model CNHX-6100-Y, 29:1 (60 RPM) ratio.

- #50 chain drive to 20 RPM.

- Fixed motor mount with adjustable idler sprocket.

- Fully enclosed sanitary guards.

- Meets NFPA 69 as passive isolation device.

- Support feet.

- Fully machined clearances of 0.003" to 0.005".

- Bolt on trough type pan to 11" OD 11 ga. tubing.

- Trailing edges relieved to 1/8" land on tips and sides of all rotor blades.

- bolt on pan flanged in and out.

- Product contact zones unpainted, all other surfaces painted Kice white; guards painted safety orange.

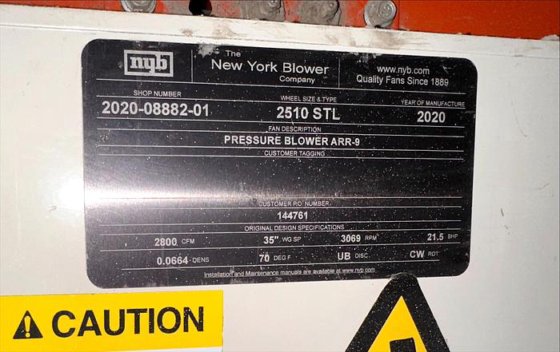

- FC13W Fan

- Arrangement #9F heavy-gauge steel base with continuous welds.

- Heavy-duty pillow block bearings.

- Turned, ground, and straightened shaft.

- Dynamically and statically balanced rotor with tapered hub and bushing.

- Narrow width high static, heavy-duty rotor.

- Rotor to be fabricated of carbon steel.

- Heavy duty housing with continuous welds.

- Housing to be fabricated of carbon steel.

- Sanitary design motor rails with integral drive tensioning mechanism.

- Standard 40 HP, 1800 RPM, frame, class TEFC, 575/3/60 motor.

- NOTE: TEFC motor with no environmental marking/T Code.

- V-belt drive with 1.5 to 2.0 service factor.

- Totally enclosed sanitary belt and shaft guard.

- Factory test run prior to shipment.

- Inlet to 12" OD.

- Flanged rectangular outlet.

- Discharge transition to 12" OD with single-bladed damper.

- Vibration isolation mounting pads.

- Vibration isolation sleeve with clamps for fan discharge.

- Vibration isolation sleeve with clamps for fan inlet.

- Bolt-on inspection door.

- Housing to have drain port in the bottom.

- Product contact zones unpainted, all other surfaces painted Kice white; guards painted safety orange.

- SS11-120 Straight Section - Qty:10

- 120" long.

- SFS11 flange welded on both ends.

- Material of construction to be 14 ga. carbon steel.

- Product contact zones unpainted, all other surfaces painted Kice white.

- EL11-90 Long Radius Ell (Qty:2)

- - SFS11 flange welded on one end - other end angle flange shipped loose.

- - Material of construction to be 12 ga. carbon steel.

Previous use: 6MT/hr Pneumatic Conveyance System

Location: Winnipeg, Manitoba
