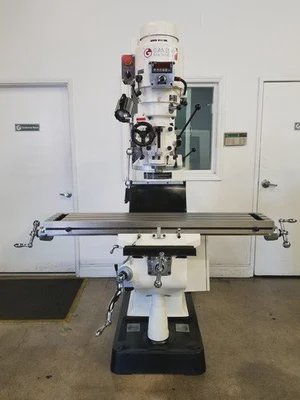

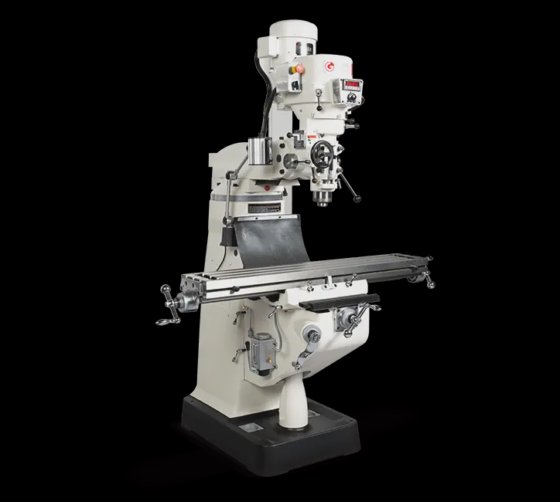

GANESH GMV-2F Vertical Mills in Denver, CO, USA
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Stock number
- 323105
- Table-w
- 9"
- Table-l
- 50"
- Travel-long
- 38"
- Travel-cross
- 12"
- Power
- 3 hp
- Rpm
- 4,500 RPM
- Taper
- R-8
- Weight
- 2,222 lbs
- Category
- Milling Machines in USA
- Subcategory
- Vertical mills
- Subcategory 2
- Manual / toolroom
- Listing ID
- 105031986
Description
+ 3 Horsepower Variable Speed Head
+ Class-7 Super Precision Spindle Bearings
+ Hard-Chrome Plated and Mirror Ground Quill
+ Hard-Chrome Plated X & Y Axis Ways
+ 9” x 50” Table Dimensions
+ Coolant Proof Halogen Lamp Standard
TABLE
Table Size (W x L)
9” x 50” (230 x 1,270 mm)
T-slot Width / Quantity
5/8” / 3 on 2.5” centers
Table Load Capacity
440 lbs (200 kg)
Table Load Capacity (Evenly Distributed)
900 lbs (408 kg)
Table Surface to Floor Dimension
32″ – 48” (820 – 1,226 mm)
MACHINE TRAVELS & CAPACITY
Table Travel – Longitudinal – X Axis
38” (966 mm)
Table Travel with Power Feed
33.07” (840 mm)
Cross Travel – Y Axis
12” (305 mm)
Vertical Knee Travel – Z Axis
16” (406 mm)
Overarm (ram) Travel
Overarm Swivel
360°
Spindle Nose-to-Table Surface
0” – 18.5” (0 – 469 mm)
Spindle Centerline to Column Face
6.75” – 18.75” (171 – 476 mm)
Leadscrews with ground pitch surface (X & Y)
0.200” per rev. (ballscrews optional)
Adjustable scale ring display resolution
0.001” (5 mm)
