Gbm Revelover/Tipping Spreader for Handling Open Top Containers with Bulk Cargo in Shanghai, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Over Sea Service
- Certification
- GS, RoHS, CE, ISO9001
- Maximum lifting height
- as Per Actual Working Condition
- Maximum lifting weight
- >10t
- Installation
- Assembled
- Moving type
- Orbital
- Delivery port
- Shanghai Port
- Self-weight
- 10t
- Driven
- Electrical Motor
- Transport package
- Nude
- Specification
- Steel Struture Q345B
- Hs code
- 84263000
- Production capacity
- 13 Set Per Year
- Category
- Cranes in China
- Subcategory
- Tower crane
- Subcategory 2
- Manufacturing & processing machinery
- Listing ID
- 104552401
Description

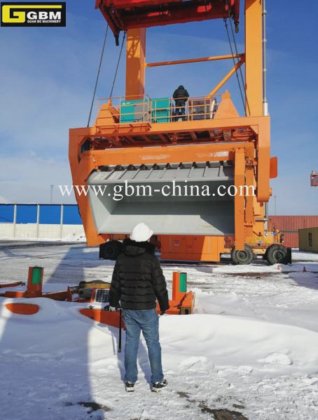

Revolver Container Spreader for Open Top Container ISO Container Spreader for handling bulk cargo
GBM Revolver,
the revolver Spreaders has been designed to handle

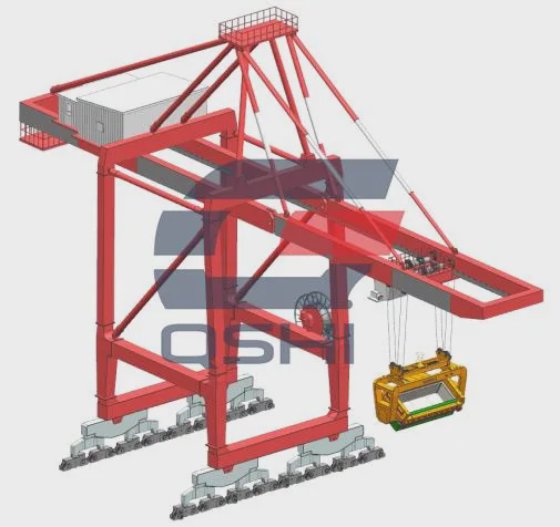

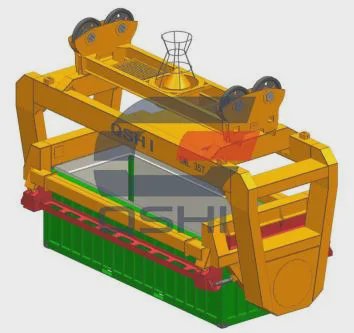

bulk cargo containers. It can be suspended from a hoisting device such as quay crane or ship crane, gantry cantilever crane or mobile equipment like fork truck. It allows the bulk cargo container to tip about an axis through the container such that bulk material such as grain, coal, iron ore etc can be tipped from the container to the ship or other receiving space. The GBM Revolver includes an outer Frame that connects to the crane head block. An inner tipping Frame connects to the dry bulk container in the same way in which a spreader connects to the container. The inner and outer Frame is pivotally engaged so that drive motors, mounted on the outer Frame can tip the inner Frame there by tipping the container.
The GBM Revolver
has the capacity to handle up to 36 Tonnes Safe Working Loads (SWL).
