Gbm High Quality Forklift Spreader Container Spreader in Shanghai, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Oversea Sevice
- Material
- Steel
- Lifting capacity
- >6T
- Fixed form
- Welding Type
- Lifting eye type
- Reversed Eye
- Rope core type
- Steel Core
- Power source
- Electric
- Shape
- Endless
- Certification
- GS, CE, RoHS, ISO 9001
- Sling color
- Blue
- Delivery port
- Shanghai Port
- Self-weight
- 4.2t
- Transport package
- Nude Packing
- Specification
- 20ft/40ft
- Category
- Forklifts in China
- Subcategory
- Lifting sling
- Subcategory 2
- Lifting equipment
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 104551223
Description

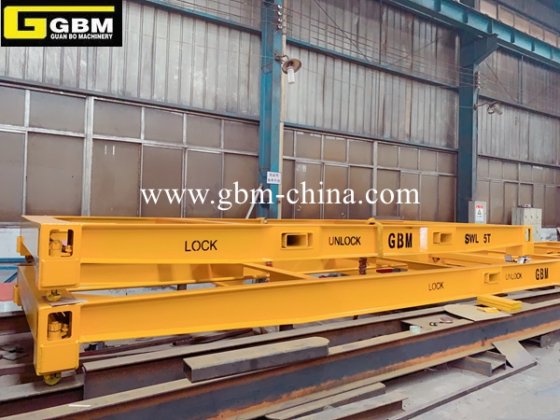

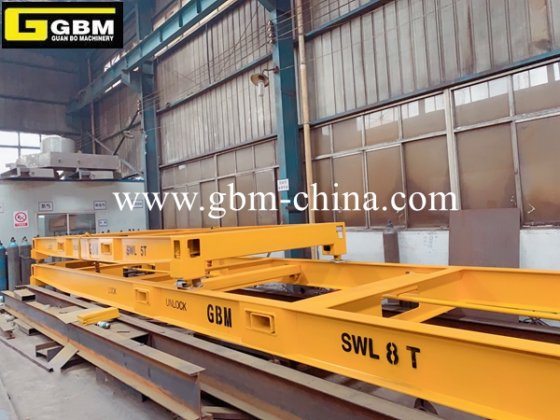

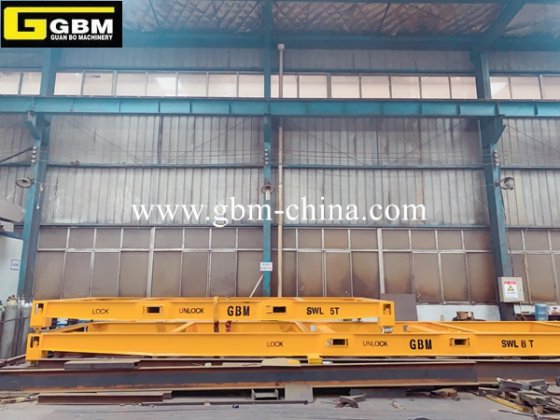

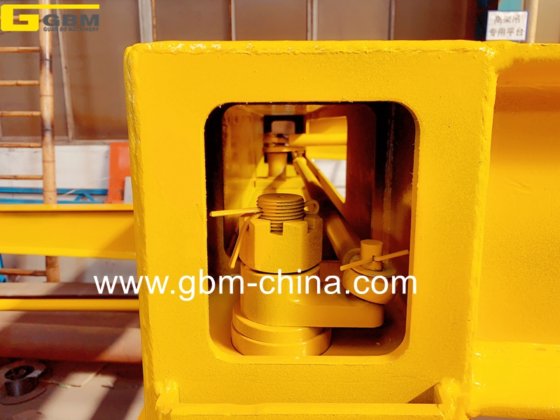

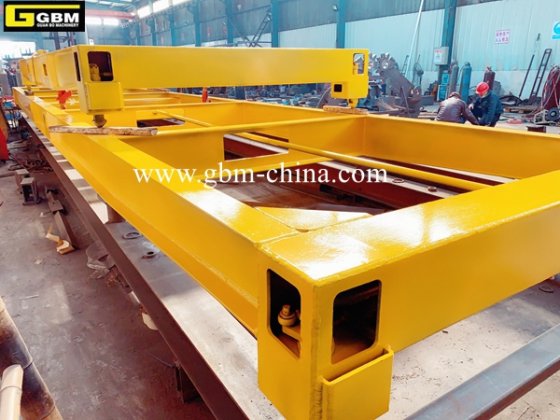

GBM high quality Forklift Spreader Container Spreader
1.Scope of supply
One unit 20'/40' GBM semi-automatic container spreader. It includes 4 steel wire ropes, which have rigging rings at the end of the steel wire ropes. The ends that connect with the crane have a concentrated ring.
Item
20'
40'
Rated SWL
25-35T
32-45T
Max. SWL
40T
50T
Dead Weight
1.2-2.6T
1.2-2.6T
2.Overall Dimensions
Item
20'
40'
Distance between lock centers(length)
≈ 5853 mm
≈11985 mm
Distance between lock centers(width)
≈ 2260 mm
≈2260 mm
Overall Length
≈ 6058 mm
≈12188 mm
Overall Width
≈ 2610 mm
≈2610 mm
Frame Height
≈ 636 mm
≈731 mm
3. Technical Parameter
Item
20'
40'
Dia. of pressed wire rope slings
32 mm
36 mm
Length of pressed wire rope slings
3.5m per piece
(4 pieces for each set)
8.5m per piece
