2021 TED TDWD40 in Miamisburg, OH, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Year
- 2021
- Function
- Finishing
- Control
- Automatic
- Finishing process
- Wire mesh
- Machine type
- Shot Blast
- Power source
- Electric
- Voltage
- 460 V
- Country/region of manufacture
- China
- Category
- Machine Tools equipment in USA
- Subcategory
- Finishing machines
- Subcategory 2
- Metalworking equipment
- Subcategory 3
- Cnc, metalworking & manufacturing
- Listing ID
- 104367951
Description
“Good used 2021 Wire Mesh steel Shot or steel Grit Blast System. Unit is under power and may need modification for your specific application.”

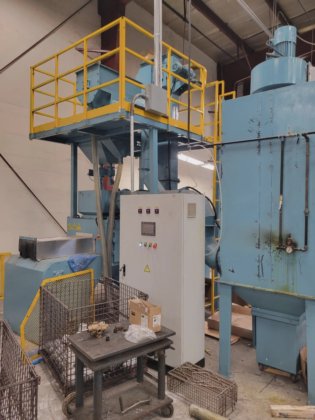

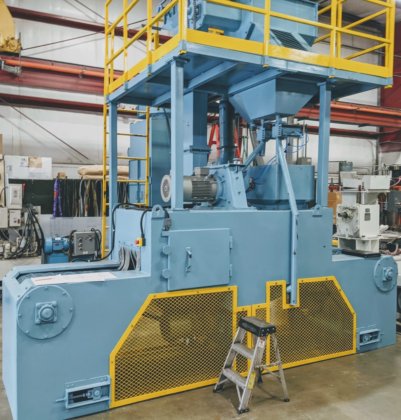

Wire Mesh Belt Pass Through Shot Blast System
Model number: TDWD40
Blast machine body: Wear plates installed inside the cabinet, and the opening size is 15.75” wide x 6.3” high with rubber curtains to help keep the blast media inside the machine

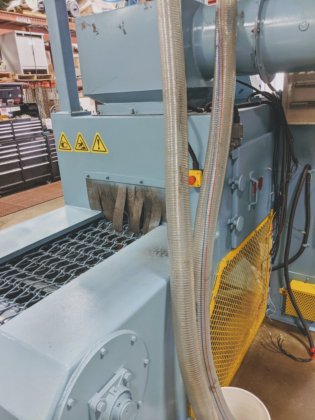

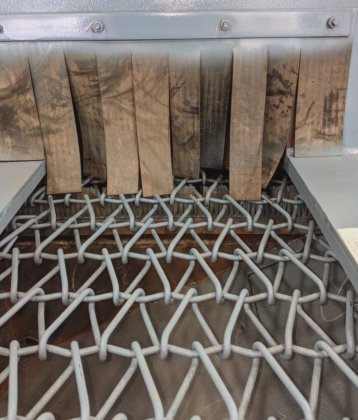

Mesh belt conveyor, 2HP VFD controlled running at 0-13 feet per minute
Blastwheel(s), 2 - 10HP direct drive VFD controlled. This blastwheel is a simple proven design and it's a workhorse. The blastwheel assembly is dynamically balanced, direct drive with a double disk design (each disk is over 3/4" thick), and straight blades
Bucket elevator: 2HP with classifier and air-wash separator to remove dust from the blast media
Dust collector: 2,345CFM with 5.4HP VFD blower having 4 cartridge filters with reverse pulse cleaning

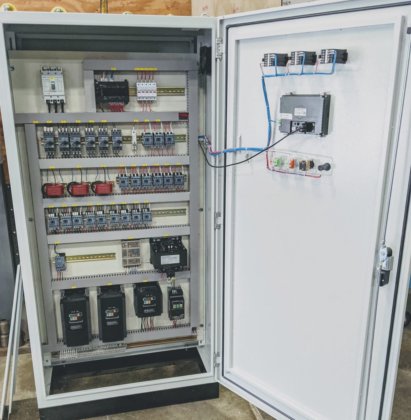

Voltage :460V 60Hz, control voltage 110V
Total power installed: 15kw, 20HP
