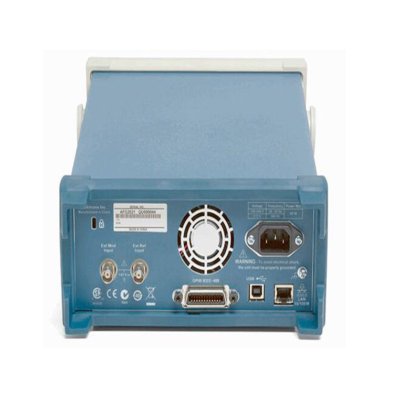

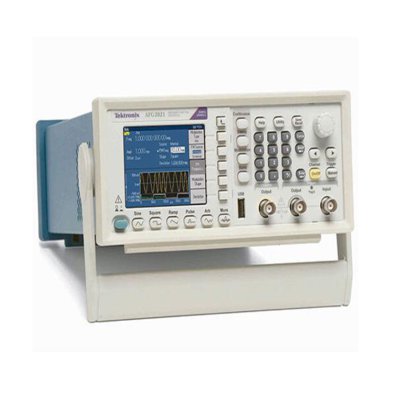

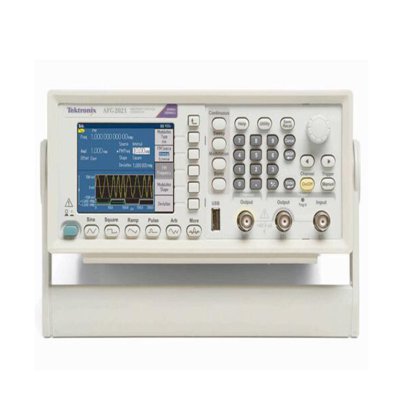

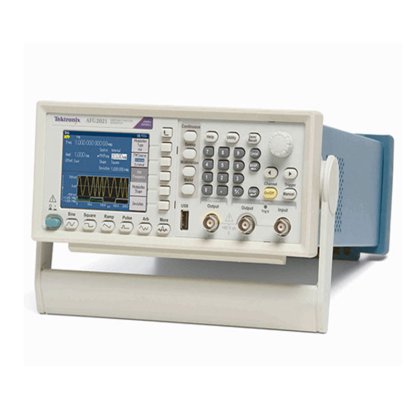

AFG2021 Function Generator in Beijing, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Features
- Explanation
- Output channel
- 1
- Output waveform
- Sine, Square, Pulse, Ramp, Noise, DC, Sin(x)/x, Gaussian, Lorentz, Exponential Rise, Exponential Decay, Haversine
- 1. sine wave
- 1uHz～20MHz
- Sine wave in burst mode
- 1uHz～10MHz
- Effective maximum frequency output
- 20MHz
- Amplitude flatness (1vp-p)
- <5MHz: ±0.15dB; 5MHz～20MHz: ±0.3dB
- Harmonic distortion (1vp-p)
- 10Hz～20kHz：<-70dBc；20kHz～1MHz：<-60dBc1MHz～10MHz：<-50dBcTHD：<0.2%(10Hz～20kHz, 1Vp-p)
- Spurious signal (1vp-p)
- 10Hz～1MHz: <-60dBc; 1MHz～20MHz: <-50dBc
- Phase noise, typical
- 20MHz: <-110dBc/Hz@10kHz bias, 1Vp-p
- Residual clock noise
- -63dBm
- 2. square wave
- 1uHz～10MHz
- Rise / fall time
- ≤20ns
- Jitter(rms), typical
- <500ps
- 3. sawtooth wave
- 1uHz～200kHz
- Linearity
- In the 10%–90% amplitude range, peak output ≤0.1%
- Symmetry
- 0.0%～100.0%
- 4. pulse wave
- 1MHz～10MHz
- Pulse width
- 30.00ns～999.99s
- Resolution
- 1mV
- Pulse duty cycle
- 0.001%～99.999% (applicable to pulse width duty cycle restriction)
- Edge transition time
- 18ns～0.625×pulse period
- Coverage
- Range Continuous mode: 0ps to period; Trigger/Gate Burst mode: 0ps to period - [Pulse Width + 0.8*(Leading Edge Time + Delay Time)]
- Overshoot, typical
- <5%
- Jitter (rms), typical
- <500 ps
- 5. other waveforms
- 1uHz～200kHz
- 6. noise bandwidth (-3db)
- 20MHz Noise Type: White Gaussian
- 7. dc (50ω)
- -5V～+5V
- 8. arbitrary waveform
- 1mHz～10MHz
- Arbitrary waveforms in burst mode
- 1mHz～5MHz
- Effective analog bandwidth (-3db)
- 34MHz
- Non-volatile memory
- 4 waveforms
- Memory: sampling rate
- 2～128k: 250MS/s
- Vertical resolution
- 14-bit
- Jitter (rms)
- 4ns
- 9. amplitude, 50ω load
- 10mVp-p～10Vp-p
- Amplitude, open circuit
- 20mVp-p～20Vp-p
- Accuracy
- ±(1%| Set|+5mV + 0.5% amplitude (Vp-p))
- Unit
- Vp-p, VRMS, dBm (sine wave only)
- Output impedance
- 50Ω
- Load impedance setting
- You can choose: 50Ω, 1Ω～10.0kΩ, high impedance (adjust the displayed amplitude according to the selected load impedance)
- Isolation
- Maximum to ground <42 VPeak
- Short circuit protection
- Signal output effectively prevents permanent short circuit and floating grounding
- External voltage protection
- Use fuse adapter 013-0345-00 to prevent signal output from being affected by external voltage
- Dc bias range, 50ω load
- ±(5VPeak- Amplitude Vp-p/2)
- Dc bias range, open circuit
- ±(10VPeak - Amplitude Vp-p/2)
- Interface (standard)
- USB1.1
- Category
- Test Generators in China
- Subcategory
- Signal source
- Subcategory 2
- Electronic equipment
- Subcategory 3
- Arbitrary function generator
- Listing ID
- 104134165
Description
Introduction: This generator has a three-year warranty, 20MHz bandwidth, 14-bit resolution and 250MS/s sampling rate, 1 channel, 4*128K memory depth, color TFT. 20M sine waves. This generator has a 20MHz bandwidth, 14-bit resolution and 250MS/s sampling rate, which can create simple and complex waveforms. The most impressive feature is its entry-level price. Features:
◆20MHz sine wave, 10MHz square wave and pulse wave, providing economical solutions for most applications
◆250MS/s sampling rate and 14-bit vertical resolution, providing the best signal fidelity in its class
◆Intuitive user interface similar to AFG3000 series, shortening learning cycle and customer product development cycle
◆4*128kS memory and USB memory expansion device, storing user-defined arbitrary waveforms
◆Standard USB host interface/device interface, optional GPIB and LAN interface, achieving the best balance between cost and versatility
◆Multiple operation modes and modulation modes, covering the operation requirements of most customers, menus and online help are divided into 8 languages, including Chinese
◆2U height and half rack width, suitable for desktop applications and rack-mounted applications
◆ArbExpress free software, editing and downloading user-defined waveforms becomes extremely easy
◆SignalExpress free software, combining a variety of Tektronix desktop instruments into a low-cost automatic test solution
Application range:
◆Electronic test and design; ◆Sensor simulation; ◆Education and training; ◆Functional test; ◆System integration
