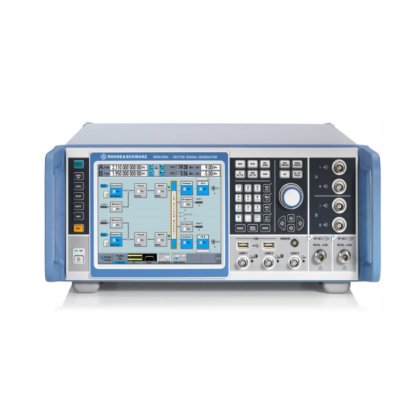

SMW200A Vector Signal Generator in Beijing, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Category
- Test Generators in China
- Subcategory
- Signal source
- Subcategory 2
- Electronic equipment
- Subcategory 3
- Vector signal generator
- Listing ID
- 104134098
Description
Introduction:
The SMW200A is a vector signal generator developed to meet the most demanding applications. With its excellent flexibility, performance and intuitive operation, it is the perfect tool for generating high-quality complex digital modulation signals.
The SMW200A is a vector signal generator developed to meet the most demanding applications. With its excellent flexibility, performance and intuitive operation, it is the perfect tool for generating high-quality complex digital modulation signals.
The SMW200A is an ideal signal generator for developing new broadband communication systems, verifying 3G and 4G base stations, and digital modulation signals required in aerospace and defense.
With an internal baseband, up to 2GHz of I/Q modulation bandwidth can meet 4th and 5th generation standards (such as 5G, LTE-Advanced and IEEE 802.11ac/ad), and the SMW200A is designed to meet future needs. Its modular, scalable architecture enables users to optimize the generator for their specific applications and upgrade it as needed.
A second RF path can be added, as well as supporting up to 2 baseband modules and 4 fading simulator modules without compromising signal quality. As a result, the SMW200A can create signal scenarios that previously required multiple instruments or were not possible at all. From up to 8x8 MIMO and LTE-Advanced carrier aggregation signals including fading to multi-standard wireless technologies, no single instrument has ever been able to provide such complete signal generation capabilities.
Key Features:
• Frequency range from 100kHz to 3GHz, 6GHz, 7.5GHz, 12.75GHz, 20GHz, 31.8GHz, 40GHz, 44GHz, 56GHz, 67GHz
• Optional second RF channel frequency range from 100kHz to 3GHz, 6GHz, 7.5GHz, 12.75GHz, 20GHz, 31.8GHz, 44GHz
• Internal baseband signal generator produces up to 2GHz I/Q modulation bandwidth (RF bandwidth)
• Signal generation for all major digital communication standards
• Advanced GNSS and radar simulator
• Integrated fading, up to 800 MHz bandwidth and 8x8 MIMO
• Support for all major MIMO modes including 2x2, 3x3, 4x4, 8x4, 4x8 and 8x8
• Intuitive operation through touch screen and block diagram structure
Product advantages:
Universal configuration
With its modular design, the SMW200A can also be equipped with various options to meet specific application requirements. And any configuration can be adopted, from a common single-path vector signal generator to a multi-channel MIMO receiver tester.
The generator can be equipped with up to 2 built-in baseband modules and 4 fading simulator modules, and a second RF path can be installed. This makes it possible to generate two full-featured vector signal generators on a single instrument.
