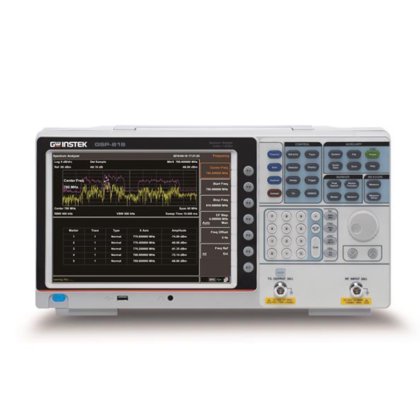

GSP-800 Series Spectrum Analyzer in Beijing, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- - frequency range
- 9kHz～8.0/3.8/1.8GHz
- • rbw
- 10Hz-3MHz, 10Hz-500KHz, in1-10steps
- • sensitivity
- 140dBm@RBW10Hz,PreAmp
- • screen
- 10.4-inch SVCA output (distinct rate 800x600)
- • optional
- Signal Trackers, EMI Filters and Detectors
- Category
- Spectrum Analyzers in China
- Subcategory
- Analyzer
- Subcategory 2
- Electronic equipment
- Listing ID
- 104133917
Description
Introduction:
GSP-800 series is a new basic spectrum analyzer launched by GW Instek Electronics, which can support the frequency range of up to 8.0/3.8/1.SGHz, and it provides the testing needs of RF products in the production/development stage.
GSP-800 series is a new basic spectrum analyzer launched by GW Instek Electronics, which can support the frequency range of up to 8.0/3.8/1.SGHz, and it provides the testing needs of RF products in the production/development stage.
GSP-800 series has a built-in 20dB amplifier and provides an adjustable resolution bandwidth (RBW) in the range of 10Hz-3MHz; in addition, it has AM/FM signal demodulation function, as well as ACPR/OCBW/CHPW channel test function, which can meet the general RF signal measurement.
In addition, the built-in TimeSpec function of the GSP-800 series can simultaneously view the relationship between power, frequency and time; the bandwidth zoom function (ZoomIn/Out) can be used to view the spectrum performance of the signal under different spans; the Limitline function provides two different Limitline settings: WindowsMeasure and LimitlineMeasure. Users can use these functions to perform a wider range of measurement applications.
In order to make signal observation clearer, the GSP-800 series uses a 10.4-inch large screen and supports SVGA (800x600) resolution; in terms of communication interface, the GSP-800 series provides 7USB and LAN interfaces. Through USBHost, users can quickly grab the files stored after measurement, while the USBDevice and LAN interfaces allow users to control through exclusive PC software, or use the corresponding instruction set to design the required program.
In addition, the GSP-800 series provides two optional features, namely TG and EMIFilter&Detector. Unlike previous models, if customers need optional features, they no longer need to ship the equipment. They only need to purchase the corresponding software license (SoftwareKeycode) to enable the purchased options, which greatly improves the efficiency of use. In addition to GSP-880TG.
Product Features:
• Built-in AM/FM decoder
• Built-in bandwidth scaling function
• Built-in 2dB preamplifier
• Provide LAN and USB interfaces
Application range:
• Spectrum characteristic inspection and analysis
• Analysis of AM\FM signal characteristics
• Monitoring satellite upload signals of satellite news broadcast vehicles
• A compact test system is required
• Measure the frequency response of RF cables, attenuators, filters and amplifiers
